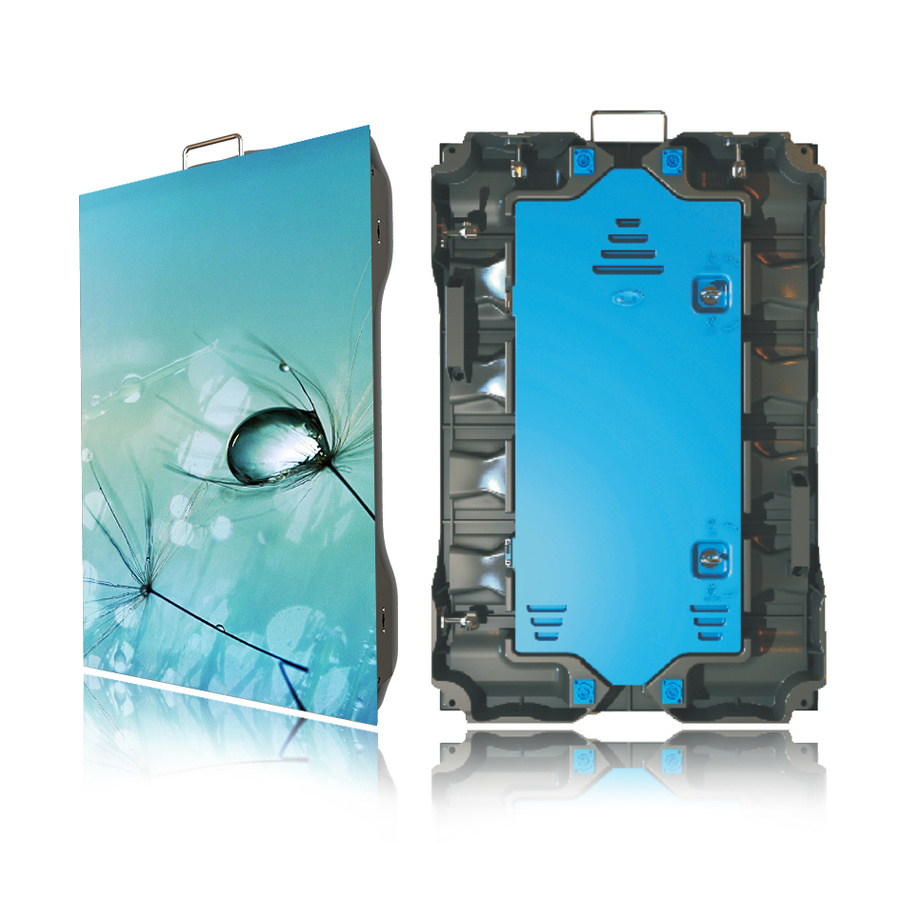

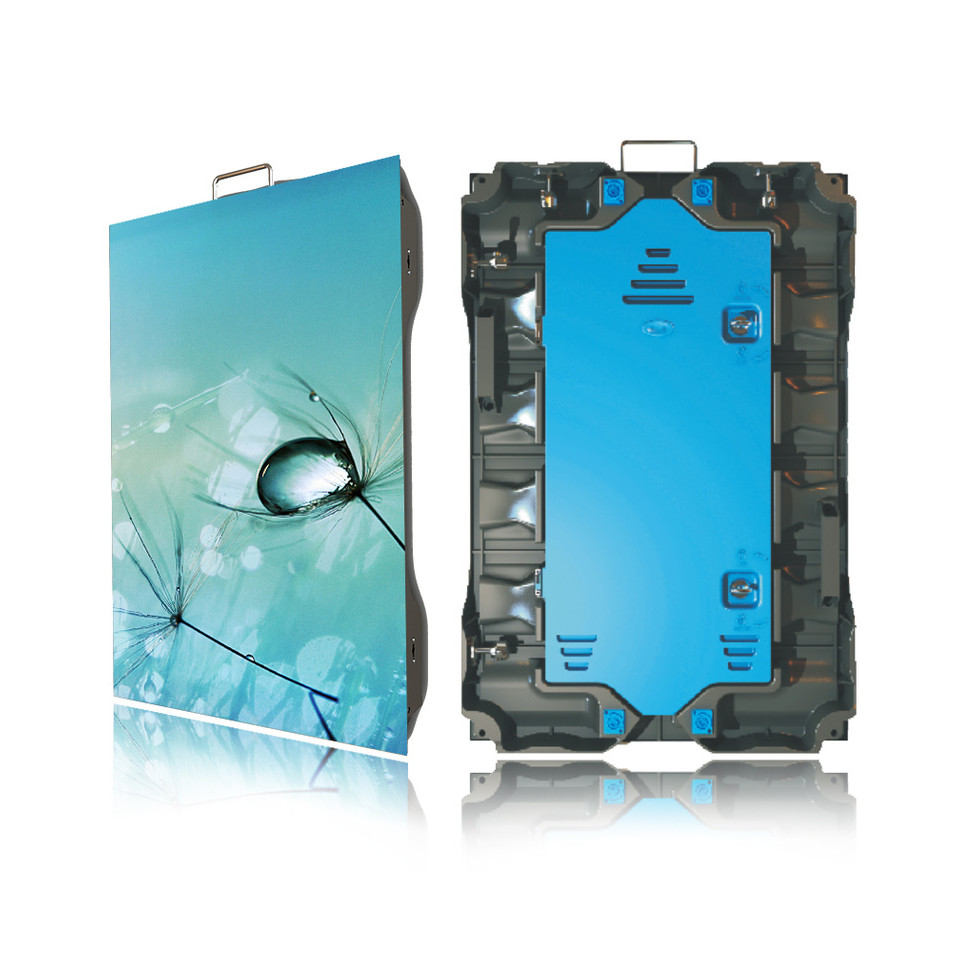

P4 outdoor LED display die-casting aluminum rental box

Product information

Main technical parameters of outdoor P4-8S LED display
Main parameters of the module
Physical point spacing: 4 mm	Physical density: 62500 points / ㎡	Luminous point color: 1R1G1B
Unit board size: 256X128	Unit board resolution: 64*32=2048 DOTS	Unit board weight: 0.3 kg
Driver IC: FM6126/MBI5124	Drive mode: 1/16 scan	Module maximum power consumption: < 25W
The main parameters of the unit box
Unit box size 512× 512㎜	Cabinet resolution 128*128	Box area 0.262114m²
Die-cast aluminum box weight 8.5KG±0.05KG
Display main technical parameters
Best sight distance: 4m ~ 41m	Horizontal viewing angle ≧ 160° optional	Vertical ≥ 160° optional
White balance brightness ≥ 5000cd/ ㎡	Maximum power consumption < 2000W/ ㎡	Average power consumption < 1000W/ ㎡
Working voltage ( AC110/220V optional)	Changing frequency 50/60Hz	Refresh frequency : ~1920HZ
System control mode: synchronous control	Display card: DVI graphics card	16 levels adjustable
Brightness adjustment method
Brightness sensor automatic adjustment : 16 levels adjustable		Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98 , WINXP , WIN2000,Win7/8, etc
Video signal
RF , S-Video , RGB , RGBHV , YUV , YC , COMPOSITION , etc.
Control System
PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
MTBF ≧ 5000 hours	Lifespan: 75000 ～100000 hours	Pixel runaway rate < 0.0002 pieces
Item Category: PH4-8S	Package form: three in one	LED packaging method: 2525
