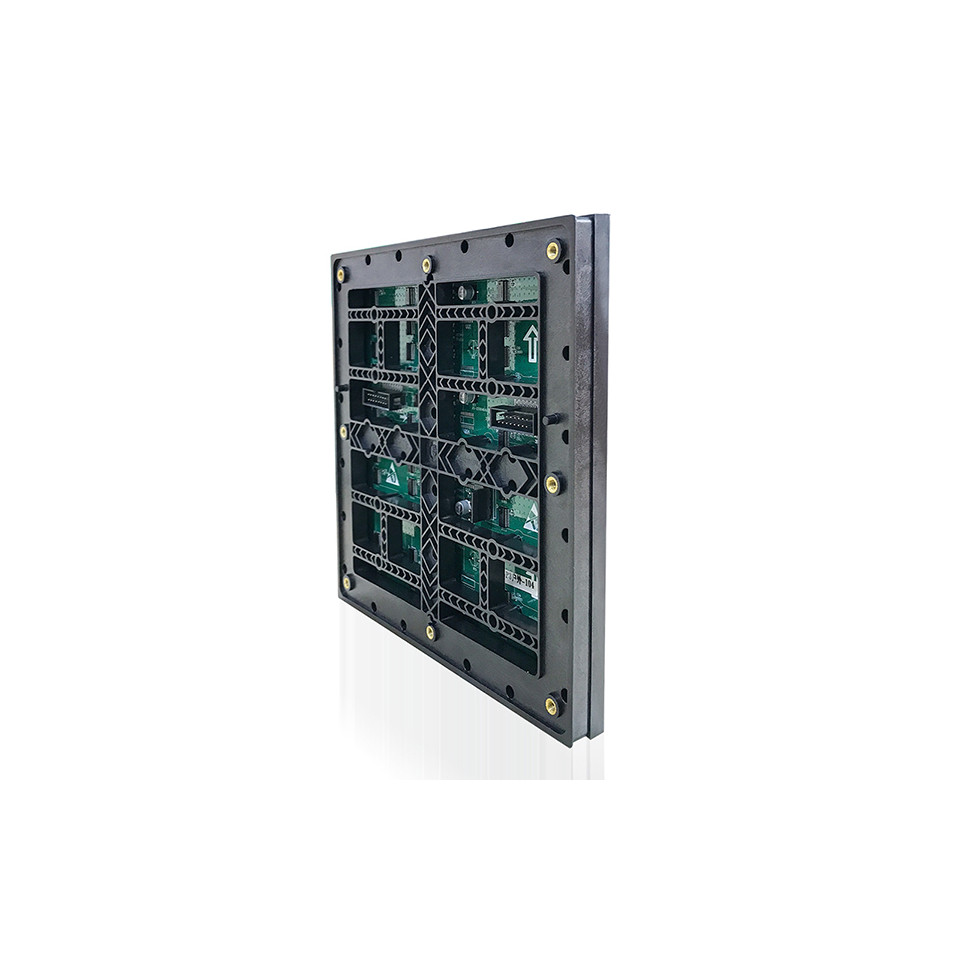

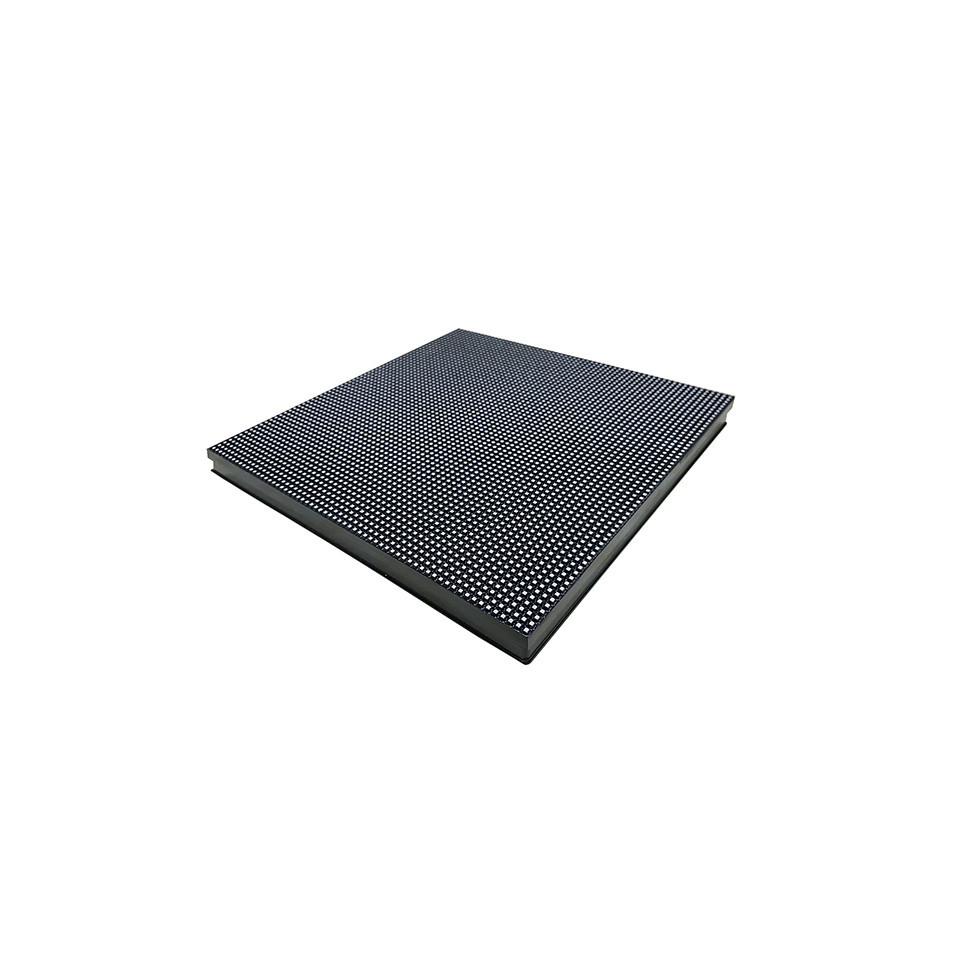

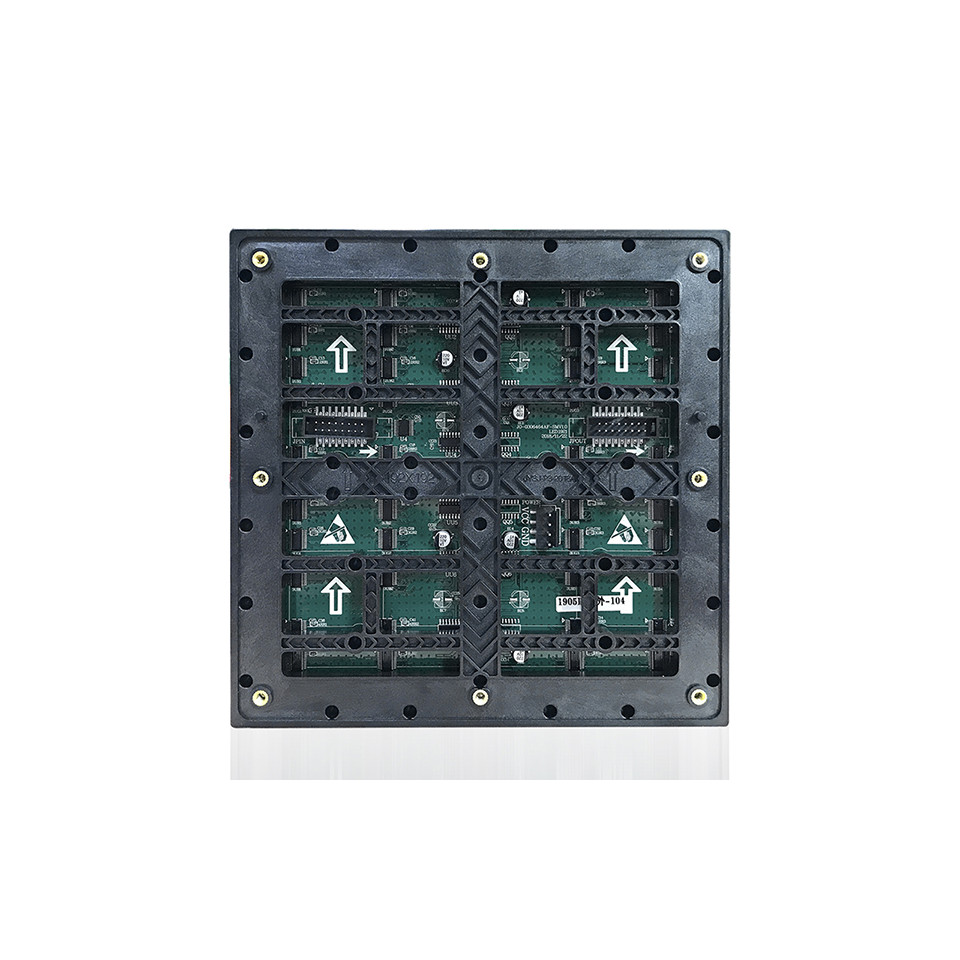

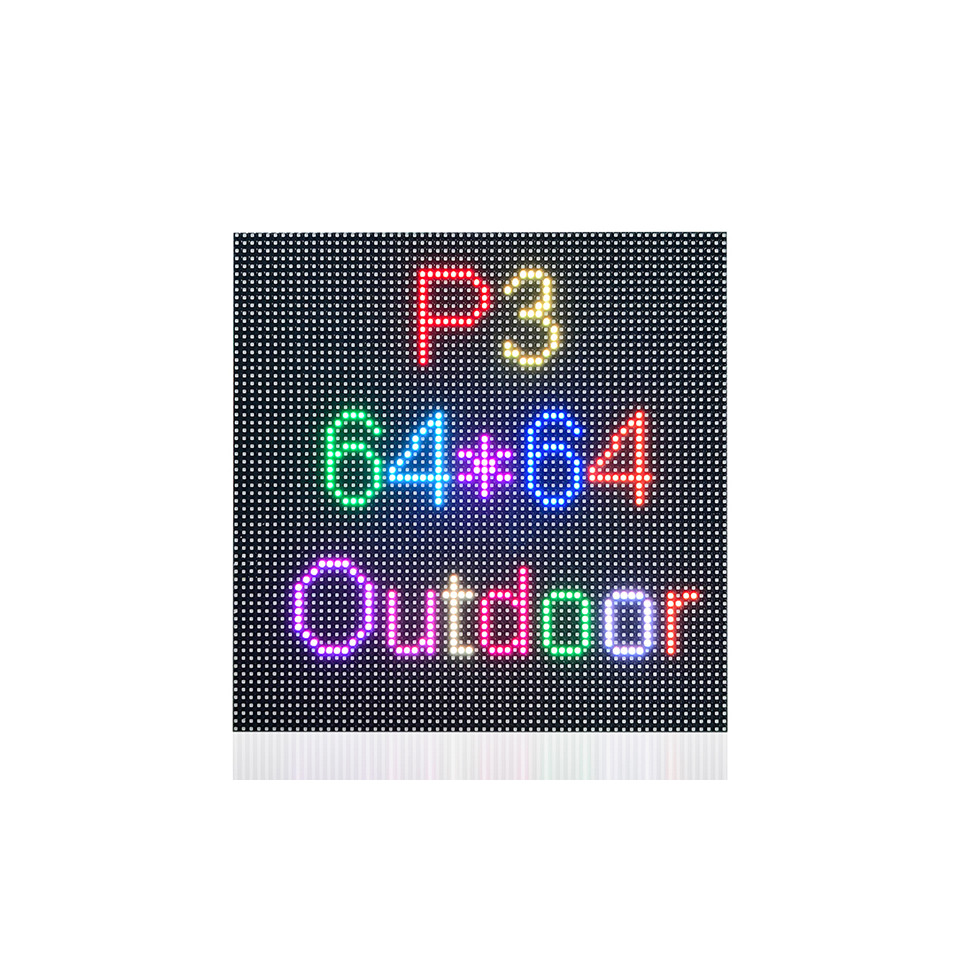

P3 outdoor full color LED display module 192*192mm

Contact now

Sale

Sale

Product information

OUTDOOR P8 SMD 3IN1 TECHNICAL PARAMETERS
Module	Item	Parameter
	Model Number	P3 outdoor
	Module size	192mm*192mm
	Pixel pitch	3mm
	Pixels Density	111111dot/m2
	Pixel configuration	1R1G1B
	Package mode	SMD1921
	Pixel resolution	64dots(W)*64dots(H)
	Max Power	23W
	Weight	0.38kg
	Drive type	Constant drive
	Scan mode	1/5scan
	Port type	HUB75
	Brightness of white balance	≥5500cd/SQM
	Best viewing distance	3M～20M
	Best viewing angle	160°(W) 120°(H)
	Temperature	(Storage) 35℃～+85℃, (Working) -20℃～+50℃
	Relative humidity	10%-95%
	Working voltage	DC 5V
	Average Power consumption	<200W/㎡
	Max.Power consumption	<800W/㎡
	Current	<18mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>1920HZ
	Grey scale/colors	16384gray level/16.7M colors
	MTBF	>9000hours
	Power switch	Automatic switch
