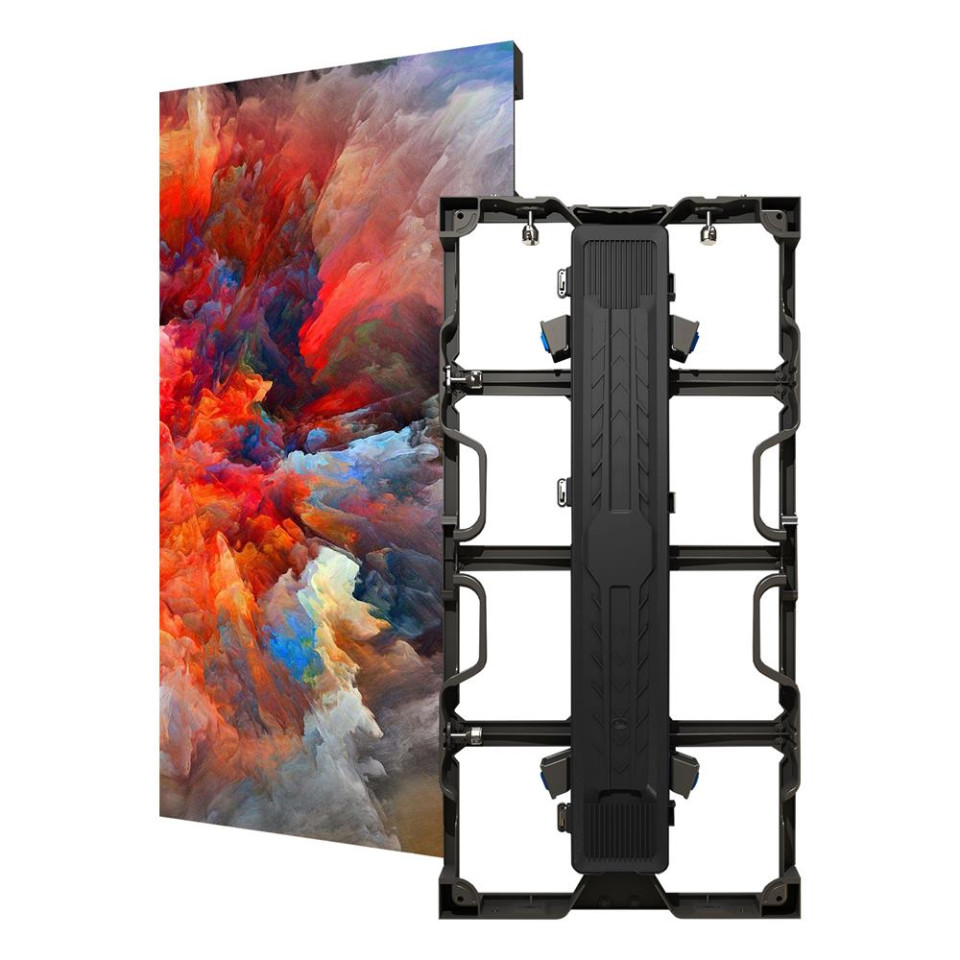

Outdoor P2.976 die-casting aluminum rental led display box

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information
Main technical parameters of P2.976-16S outdoor LED display
Main parameters of the module
Physical point spacing: 2.976 mm Unit board size  250X250 ( mm ) Unit box size: 500×500×70 ( mm )
Physical density 112896 points / ㎡ Luminous point color  1R1G1B Unit board resolution  84*84=7056  DOTS
Driver IC: FM6126/MBI5124 Drive mode: 1/16 scan Module maximum power consumption: < 25W
Unit board weight 0.57 kg
Cabinet resolution 168*168 Box area 0.4096m² Die-cast aluminum box weight 7.5KG±0.05KG
The main technical parameters
Best sight distance: 3m ~ 38m Horizontal viewing angle ≧ 160° optional Vertical ≥ 160° optional
Control mode: synchronous control Maximum power consumption < 800W/ ㎡ Average power consumption < 350W/ ㎡
White balance brightness  ≧4000cd/㎡ Changing frequency  50/60Hz Refresh frequency : ≧ 1920Hz
Drive mode  1/16 scan Display card : DVI graphics card Maximum power ≤ 50W
Brightness sensor automatic adjustment : 16 levels adjustable Brightness adjustment method
Software manual adjustment: 100 levels adjustable 100
Computer operating system
WIN98 , WINXP , WIN2000,Win7/8, etc
Video signal
RF , S-Video , RGB , RGBHV , YUV , YC , COMPOSITION , etc.
Control System
PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
MTBF ≧ 5000 hours Lifespan: 75000 ~100000 hours Pixel runaway rate < 0.0002 pieces
Item Category: PH2976 Package form: three in one LED packaging method: 2121
