LED ORIENT TECHNOLOGY CO., LTD

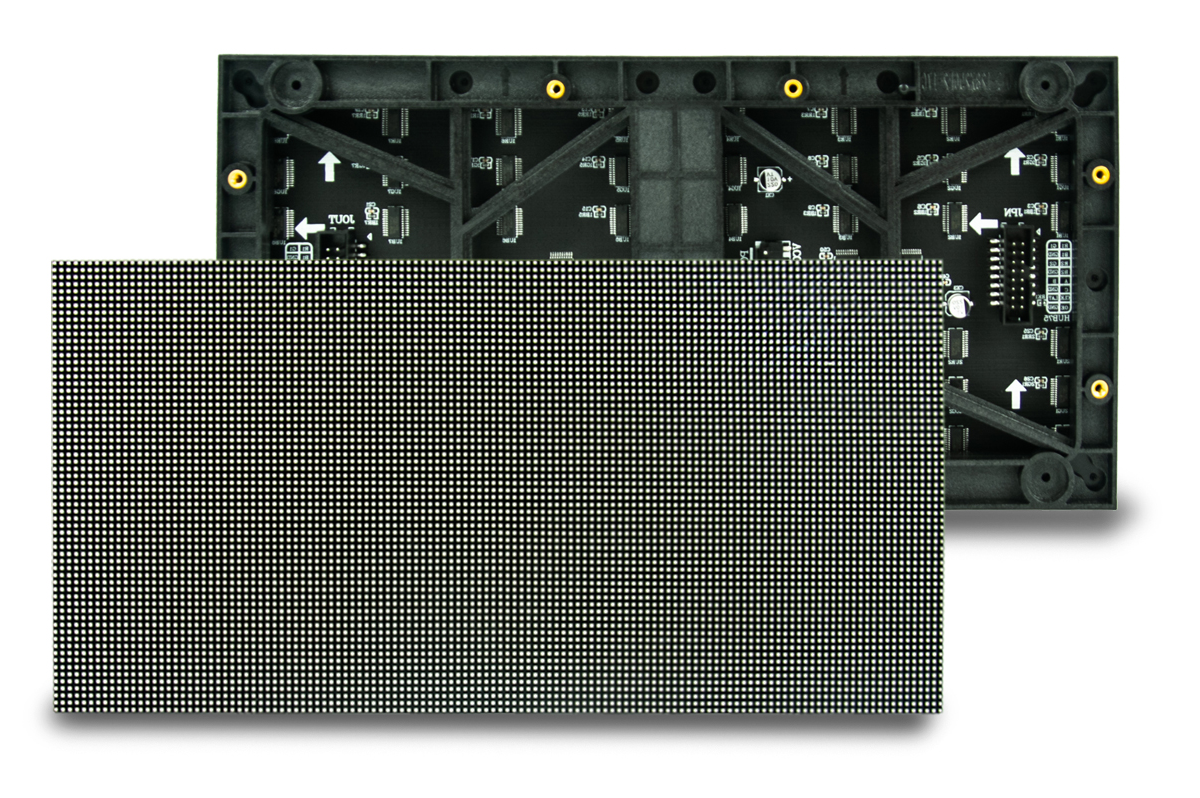

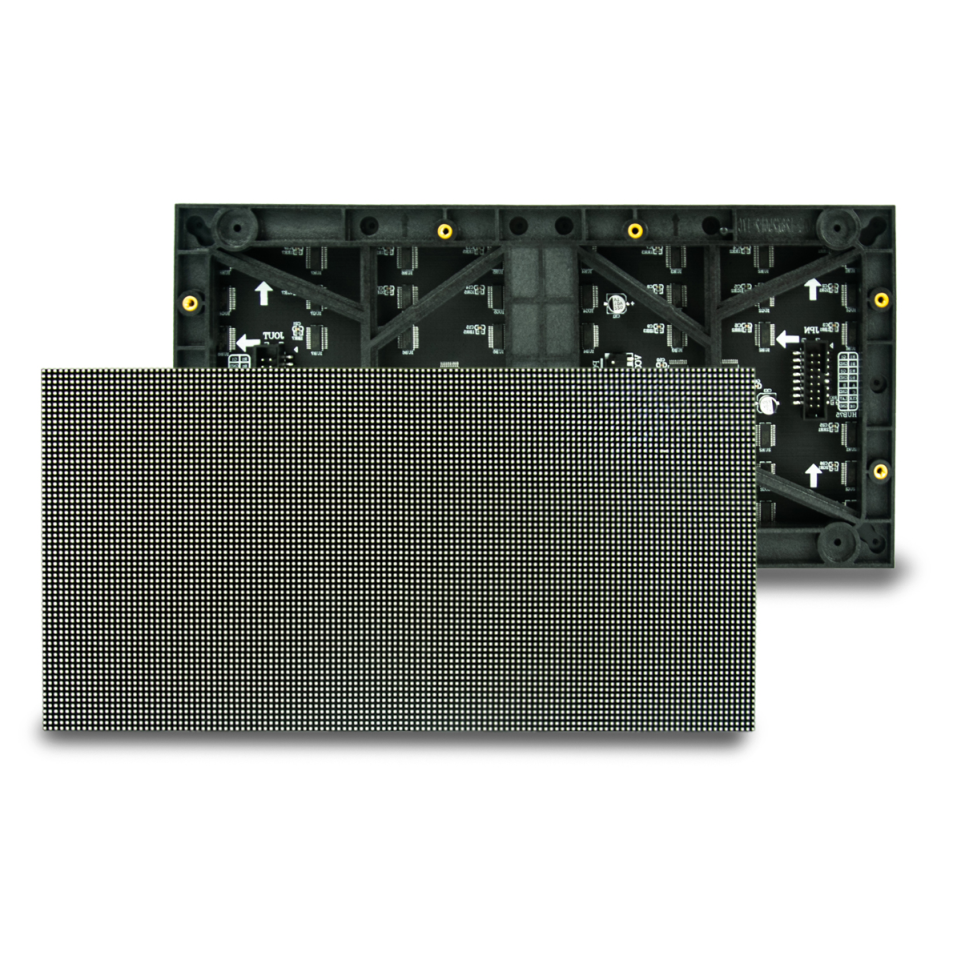

| INDOOR P2 SMD 3IN1 TECHNICAL PARAMETERS | |||
| Module | Item | Parameter | |
| Model Number | P2-20S | ||
| Module size | 320mm*160mm | ||
| Module thickness | 13mm | ||
| Pixel pitch | 2mm | ||
| Pixels Density | 25000dot/m2 | ||
| Pixel configuration | 1R1G1B | ||
| Package mode | SMD 3IN1 -1515 | ||
| Pixel resolution | 160dots(W)*80dots(H) | ||
| Max Power | 23W | ||
| Weight | 0.452KG | ||
| Drive type | Constant drive | ||
| Scan mode | 1/40can | ||
| Port type | HUB320/HUB75 | ||
| Brightness adjustment method | 256 levels adjustable by software | ||
| Brightness of white balance | ≥800cd/m2 | ||
| Best viewing distance | 2M～50M | ||
| Best viewing angle | 160°(W) 160°(H) | ||
| Temperature | (Storage) 35℃～+85℃, (Working) -20℃～+60℃ |
||
| Relative humidity | 10%-95% | ||
| Working voltage | DC 5V | ||
| Average Power consumption | <280W/㎡ | ||
| Max.Power consumption | <439W/㎡ | ||
| Current | <15mA(single LED) | ||
| Main technical parameter | Driving device | Constant drive IC HX8863 | |
| Refresh frequency | >3840HZ | ||
| Color Display | 281 trillion colors | ||
| Grey scale/colors | 65536gray level/16.7M colors | ||
| MTBF | >10000hours | ||
| Lifespan | >100,000 hrs | ||
| Power switch | Automatic switch | ||
| Working voltage | DC 5V ±10% | ||
