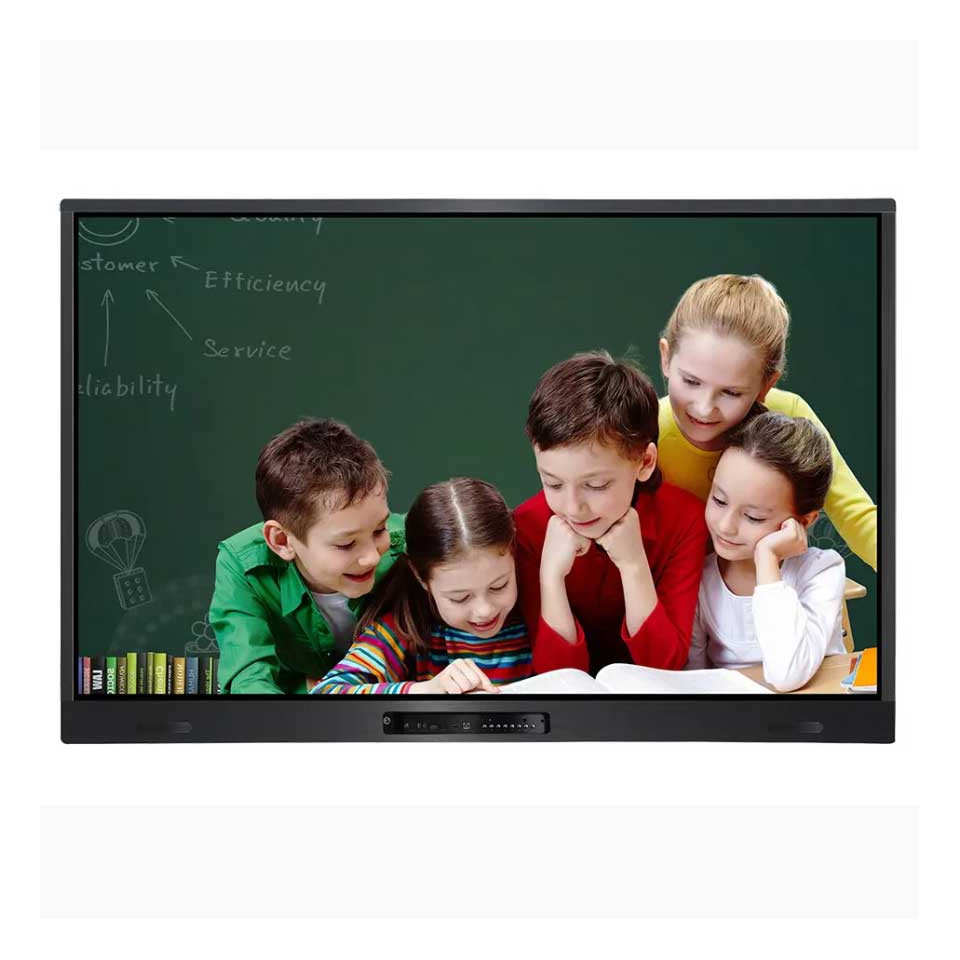

Interactive Smart Panel 55 Inch

Product information

ORIENT Education Interactive Smart Panel 55 inch, is designed to tap into the dynamic possibilities of the classroom and help teachers build a vivid and engaging learning environment. The smart panel board Orient 55 inch is also an ultimate interactive display to achieve a touch-enhanced for a smooth and fun learning experience, and it’s our caring mate for enhanced interactive learning.

Mục lục

Introduction
Product Features
SPECIFICATION

Introduction

Product Features

More Features:

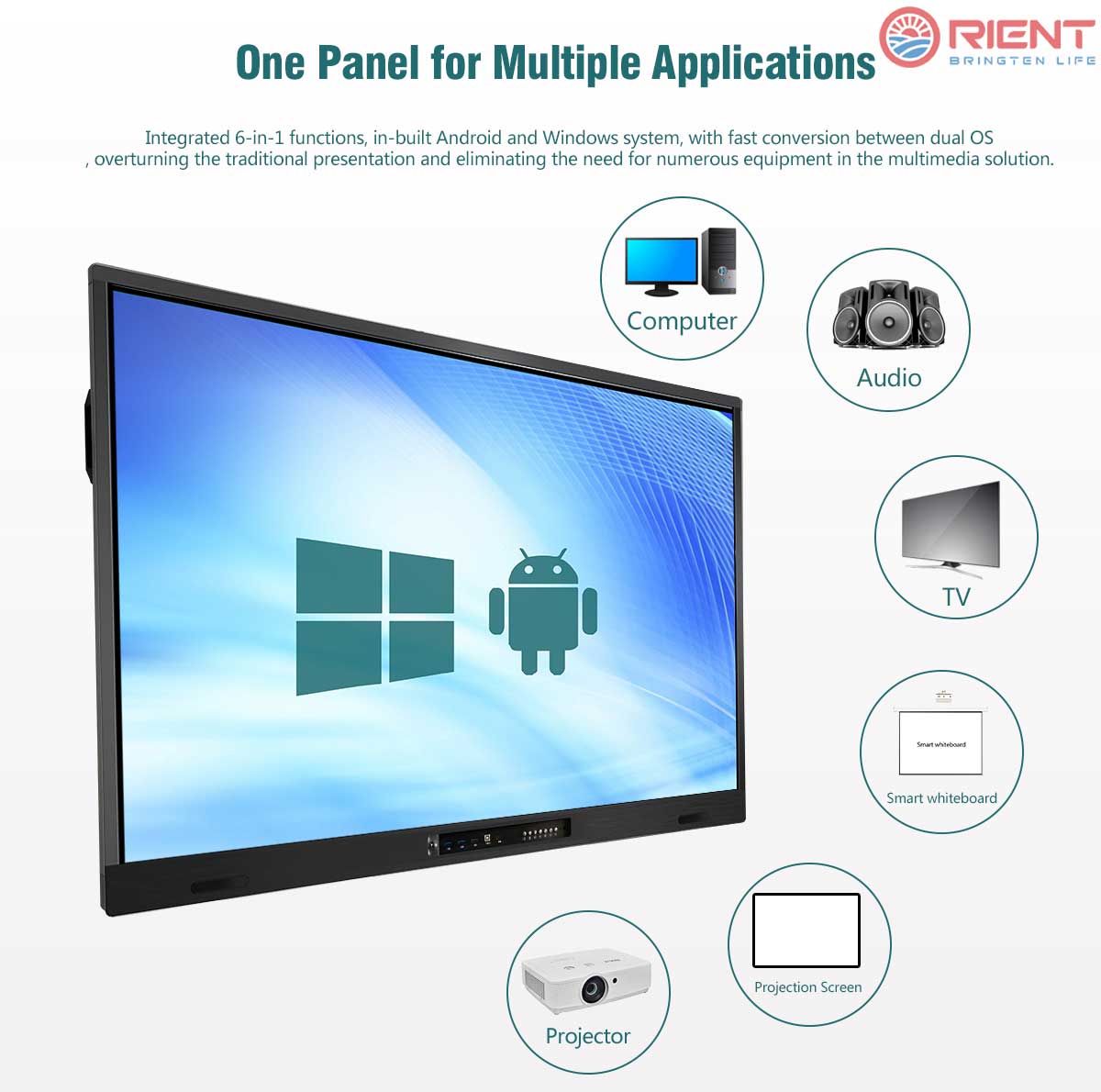

ORIENT Interactive Smart Panel is a collaboration solution designed for interactive whiteboarding, videoconferencing, screen sharing, and presentation. With in-built Android and Windows systems, it’s easy to use. Users can use multi touch capabilities on the display, also can connect to interactive flat panel displays from their own devices. Available sizes are 65” 75” 86” and 98”.

4K Ultra HD Tempered Panel

The LED panel displays 4K Ultra HD images in rich, vivid color and its solid tempered panel provides a surface that is safe for students of all ages to get inspired and express their creativity.

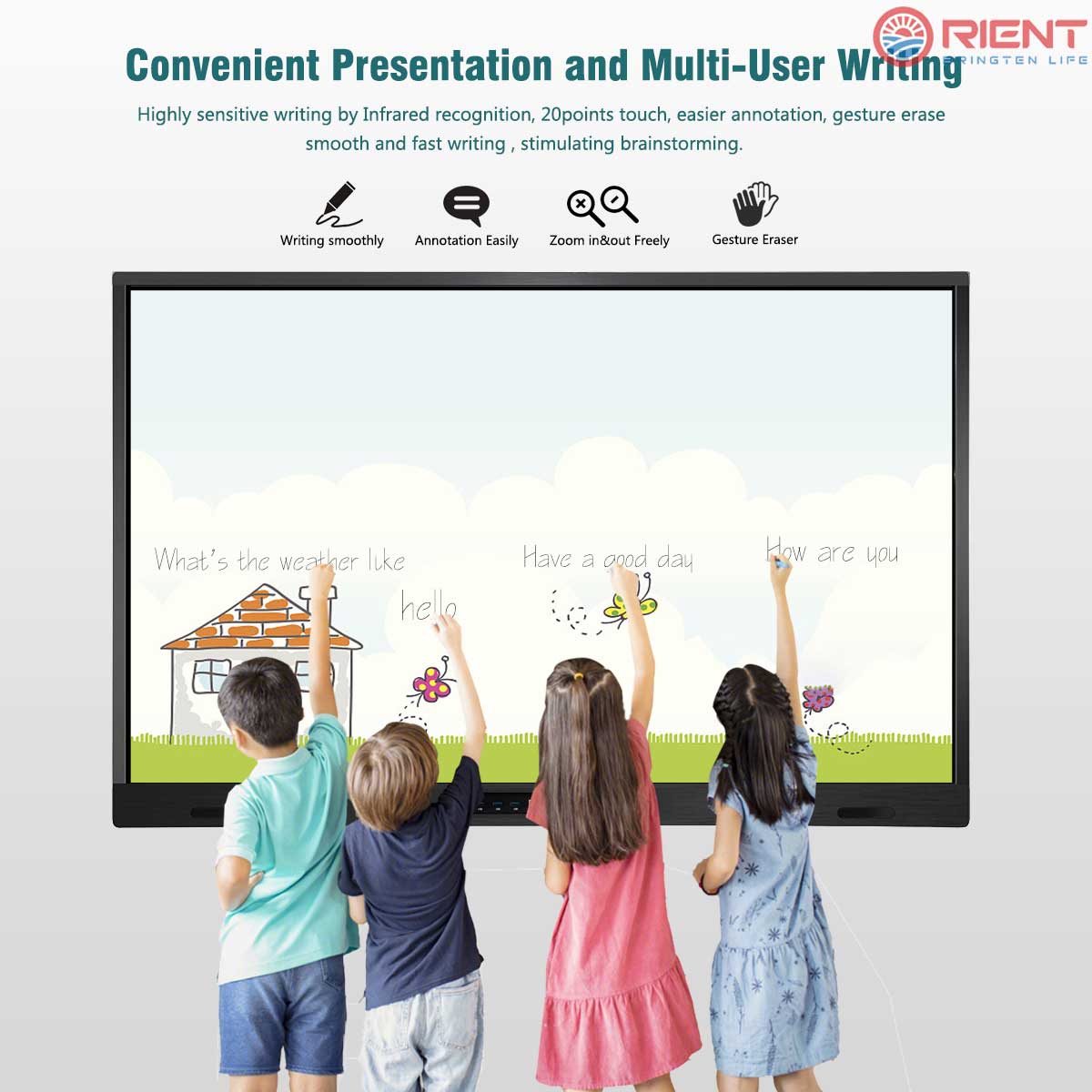

Responsive 20-Point Touch

The responsive panel allows for simultaneous touch features that are sure to delight students and provide them with the smoothest writing and drawing motions.

Effortless collaboration and engagement

Classroom devices are able to interact directly with the panel across all platforms and share content wirelessly without any app or add-on hardware installation! Highlight student work and encourage collaboration with our built-in screen share technology.

Embedded Android OS

The built-in Android OS covers a wide range of apps and tools, and easily lets teachers and students annotate, collaborate, and participate simultaneously. The plgguable OPS is optional for Windows，which running with more functional operation and documents storage.

Intuitive Design

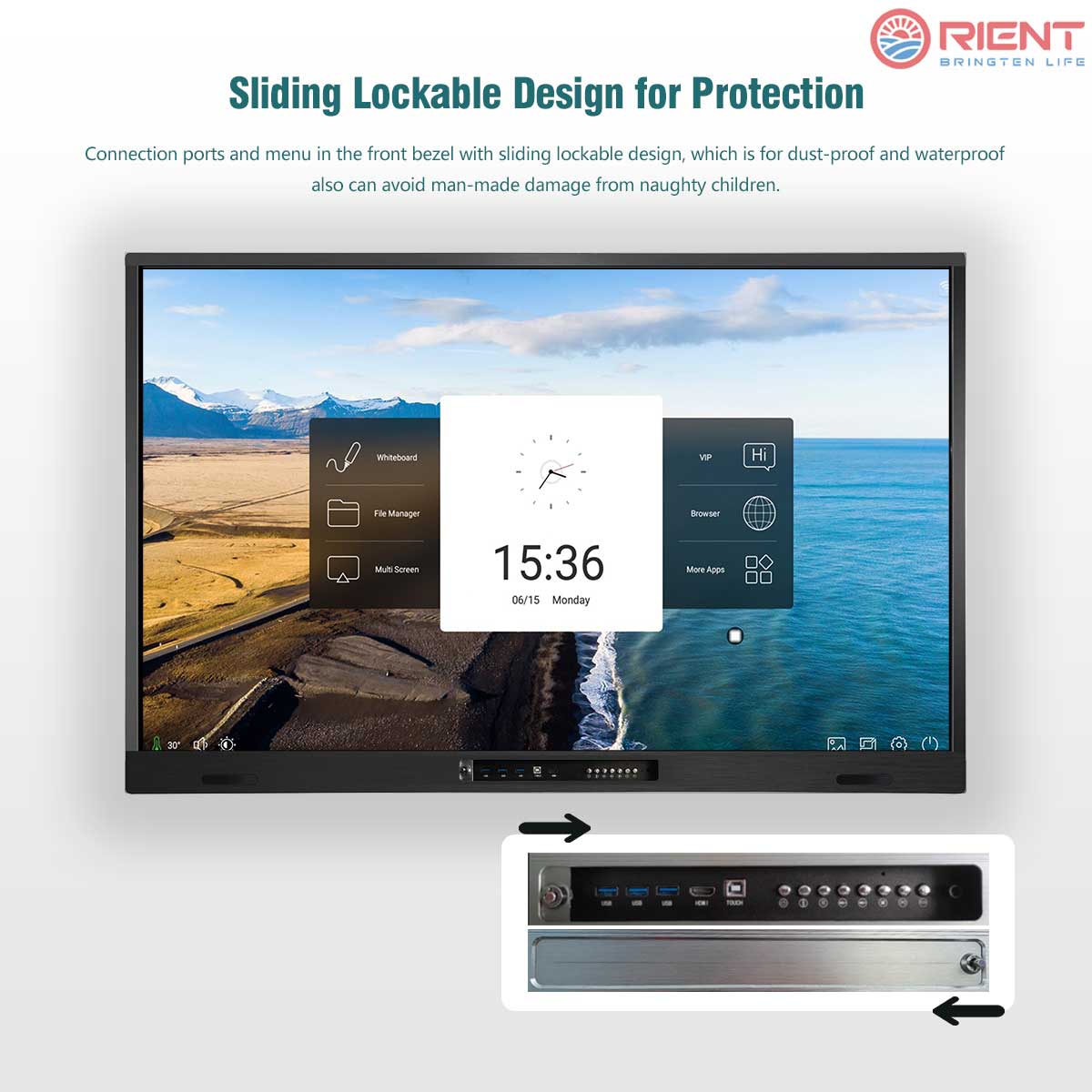

The quick access design helps teachers use tools and apps easily delivering an uninterrupted teaching flow to students. With the intuitive touch control and lightning fast response time students are able to work quickly and simultaneously with ease. With hardware protective design,the sliding door lock protection is unique designed for waterproof and dust-proof.

SPECIFICATION

Panel Parameters

LED Panel Size	65”, 75”, 86”
Backlight Type	LED (DLED)
Resolution(H×V)	3840×2160 (UHD)
Color	10 bit 1.07B
Brightness	350cd/m2
Contrast	4000:1 (according to panel brand)

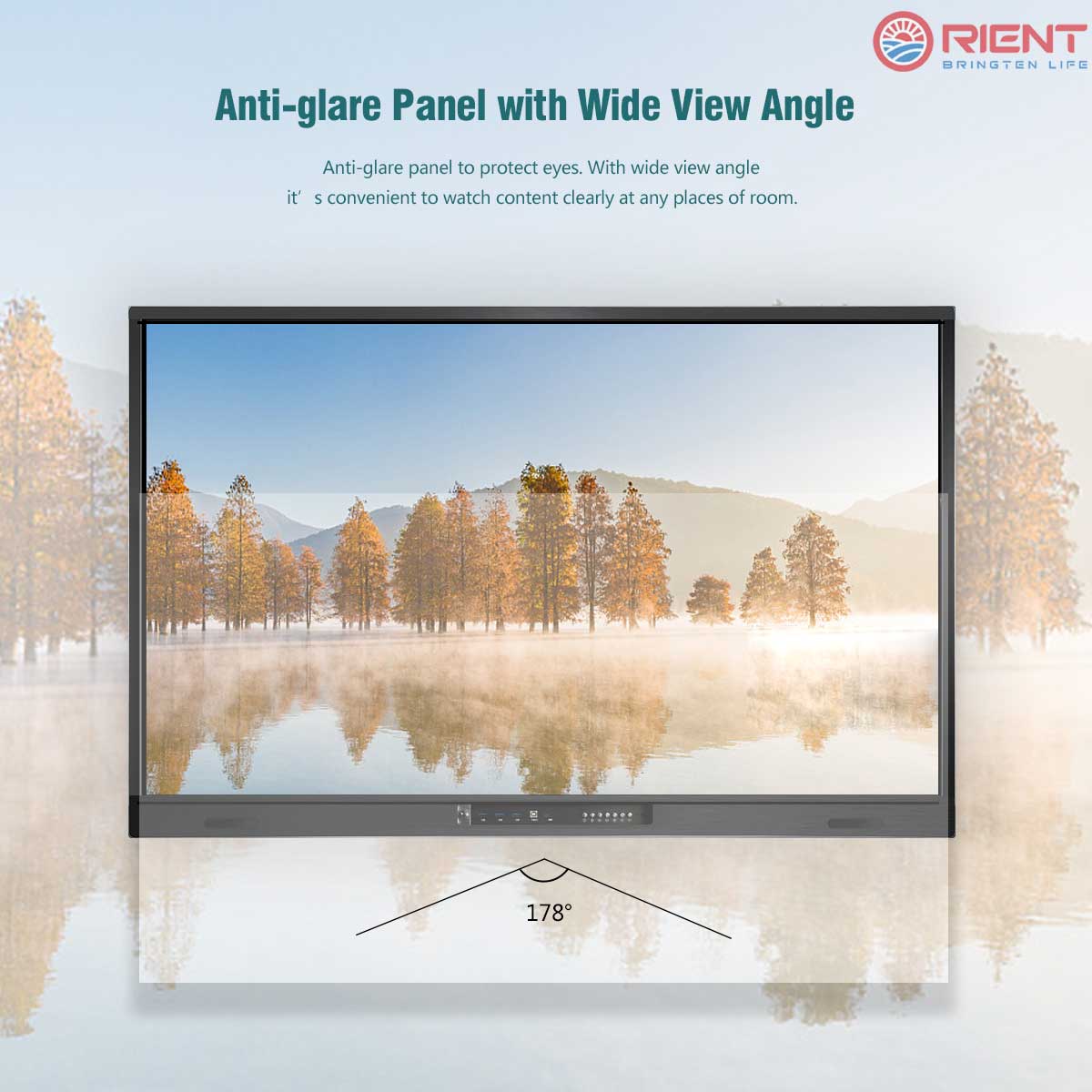

Viewing angle	178°
Display protection	4 mm tempered explosion-proof glass
Backlight lifetime	50000 hours
Speakers	15W*2 / 8Ω

System Parameters

Operating System	Android System	Android 9.0/11.0/12.013.0/ as optional
	CPU (Processor)	Quad Core 1.5/1.9/1.2/2.2GHz as optional
	Storage	RAM 2/3/4/8G; ROM 16/32/64/128G as optional
	Network	LAN/ WiFi
Windows System (OPS)	CPU	I5 (i3/ i7 optional)
	Storage	Memory: 4G (8G/16G optional) ; Hard Disk: 128G SSD (256G/512G/1TB optional)
	Network	LAN/ WiFi
	OS	Pre-install Windows 10/11 Pro

Touch Parameters

Touch technology	IR touch; 20 points; HIB Free drive
Response speed	≤ 8ms
Operation system	Support Windows7/10, Android, Mac OS, Linux
Working temperature	0℃~60℃
Operating Voltage	DC5V
Power consumption	≥0.5W

Electrical Performance

Max Power	≤250W	≤300W	≤400W
Standby power	≤0.5W
Voltage	110-240V(AC) 50/60Hz

Connection Parameters and Accessories

Input ports	AV1, YPbPR1, VGA1, AUDIO1 ,HDMI3(Front1), LAN(RJ45)*1
Output Ports	SPDIF1, Earphone1
Other Ports	USB2.02, USB3.03 (front3）,RS2321,Touch USB2(front1)
Function buttons	7 buttons in front bottom frame: Power, Source,Volume+/-,Home, PC, Eco
Accessories	Power cable1;Remote Control1; Pen1; Instruction manual1 ; Warranty card1; Wall brackets1 set

Product Dimension

Items / Model No.	65 Inch	75 Inch	86 Inch
Panel Size	65”	75”	86”
Product dimension	149090695mm	1710103095mm	1957117095mm
Packing dimension	16201054200mm	18451190200mm	21101375200mm
Wall mount VESA	500*400mm	600*400mm	750*400mm
Weight	41kg/52kg	56 kg/67 kg	71 kg/82 kg
