LED ORIENT TECHNOLOGY CO., LTD

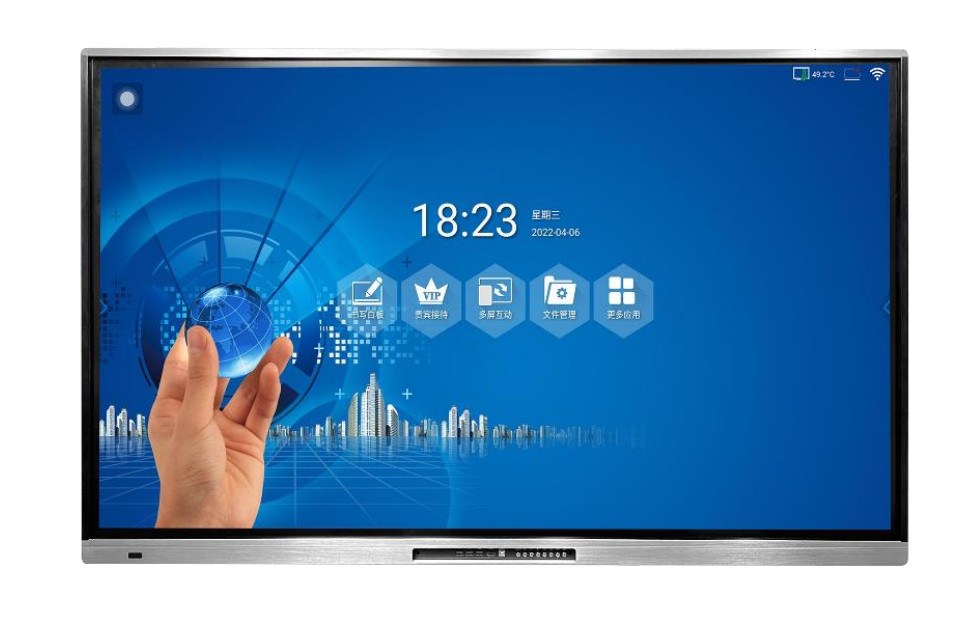

| Item Name | LED Interactive Touch Screen | |
LED Panel |
LED Panel | 98” |
| Screen Type | DLED | |
| Resolution | 3840(H)×2160(V) - 4k@60hz | |
| Color | 10bit 1.07B | |
| Response time | 6ms (Typ.) | |
| Frame rate | 120Hz | |
| Active Size | 2158.85*1214.35 mm | |
| Refresh rate | 60Hz | |
| Screen ratio | 16:9 | |
| Brightness | >400cd/m2 | |
| Contrast | 5000:1(according to panel brand) | |
| Viewing Angle | 178° (H/V) | |
| Display Protection | Tempered explosion-proof glass 4mm, anti-glare glass,Mohs 7) | |
| Backlight Life time | 50,000hours | |
Electrical Performnce |
Max Power | ≤400W |
| Standby Power | ≤0.5W | |
| Voltage | 110-240V (AC) 50/60Hz | |
Operating System (Dual OS available) |
Android System |
Android 12.0 (Upgrade) |
| CPU: 8 core A55 ,1.2MHz GPU:Quad-core MaliG52 600MHz |
||
| RAM: 8GB; ROM:128G | ||
| Network:LAN, Wifi 2.4Ghz / 5Ghz | ||
| Bluetooth 5.0 | ||
| OPS PC | Intel: Core i5-12th | |
| Storage: Ram:8G Hard Disk: 512SSD (Up to 1TB Optional) |
||
| Intel integrated HD graphics | ||
| WIFI: 802.11b/g/n | ||
| Windows: Pre-install Win11Pro | ||
Touch |
Touch Technology | IR touch;20 points (35 points customize); HIB Free drive |
| Touch Items | Finger, Pen, any opaque objects | |
| Touch accuracy | 1.5mm ±0.5mm | |
| Response Speed | ≤ 5ms | |
| Theoretical Clicks | unlimited | |
| Minimal touch | 2mm|8mm | |
| Operation System | SupportWindows7/10,Android,MacOS, Linux | |
| Camera & Micro | Specs | Camera: 48Mega pixel, ultra-wide Angle, AF; |
| Micro: 8 array micro phone available for 8-10meters | ||
| Speakers | Power | 15W*2 /8Ω |
Ports |
Input Ports | VGA*1, PC Audio*1, HDMI*2, LAN(RJ45) *1. Display port*1. |
| Output Ports | HDMI*1, Coax*1, Earphone*1, | |
| Other Ports | USB2.0*1, USB3.0*1, TFcard*1, RS232*1, Touch USB*1,OPS*1 | |
| Front Ports | HDMI*1, USB3.0*2, TypeC*1, Touch*1 | |
Working Environment |
Working temperature | 0℃-40℃ |
| Storage temperature | - 20℃～60℃ | |
| Working humidity | 10%-90%non-condensing | |
| Other Functions | Support dual systems: fast switching between Android and Windows systems | |
| Support multiple signal source selection | ||
| Support sleep timing | ||
| Support shutdown memory channel function | ||
| Support dual-stream decoding of 3D content | ||
| Support QR code sharing | ||
| Support automatic identification and class ification of U disk content | ||
| Support one-click energy saving | ||
| Support double pen switching | ||
| Support files transfer from mobile device to LED touch screen | ||
| Air Vote function | ||
| Sliding lockable design for front ports and buttons as protection, size 295*30 (mm) | ||
| Projection software (free activation) supports 4 split screens, PC projection screen supports counter attac control | ||
| OS language | English/Russian/Spanish/Chinese/ Japanese etc… | |
| Screen Brand | LG | |
| Accessories | Power cable*1pcs; HDMI cable*1 pcs; Touch usb cable*1pcs; Touch Pen*2pcs;QC card*1 pcs;Instruction manual*1pcs; Warranty card*1pcs;Wall brackets*1set; Remote Controller*1pcs |
|
| Items / Model No. | ORI-98LED | |
| Product dimension | 2206*1303*116.7 mm | |
| Packing dimension | 2315*1460*200 mm | |
| Weight | 86kgs/98kgs | |
