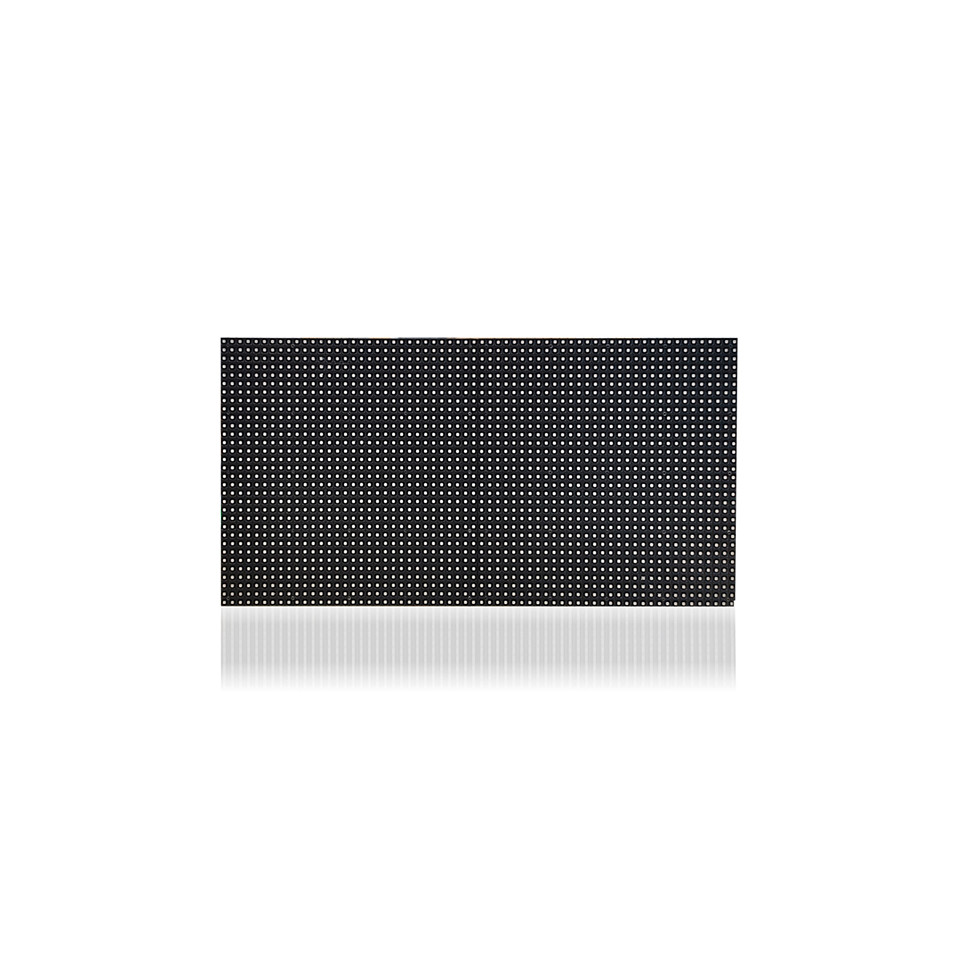

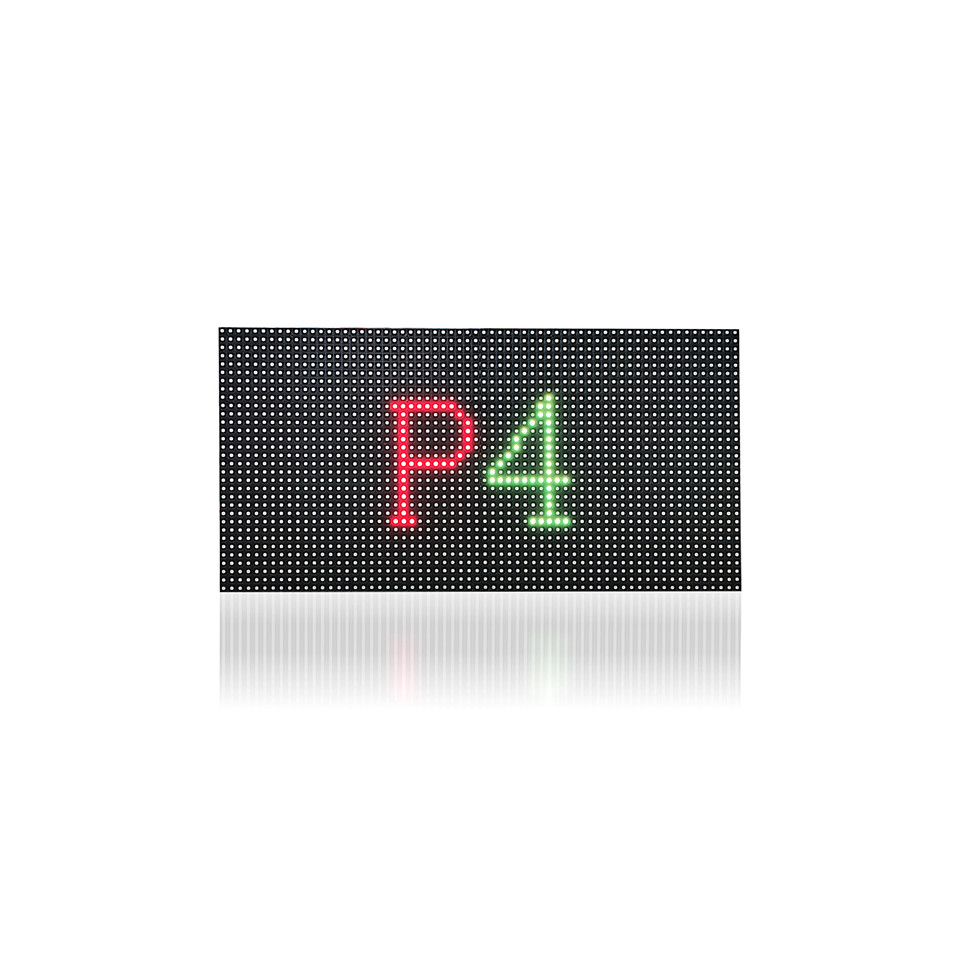

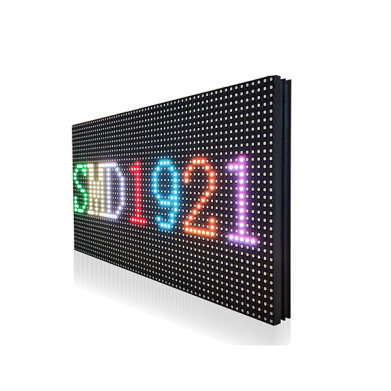

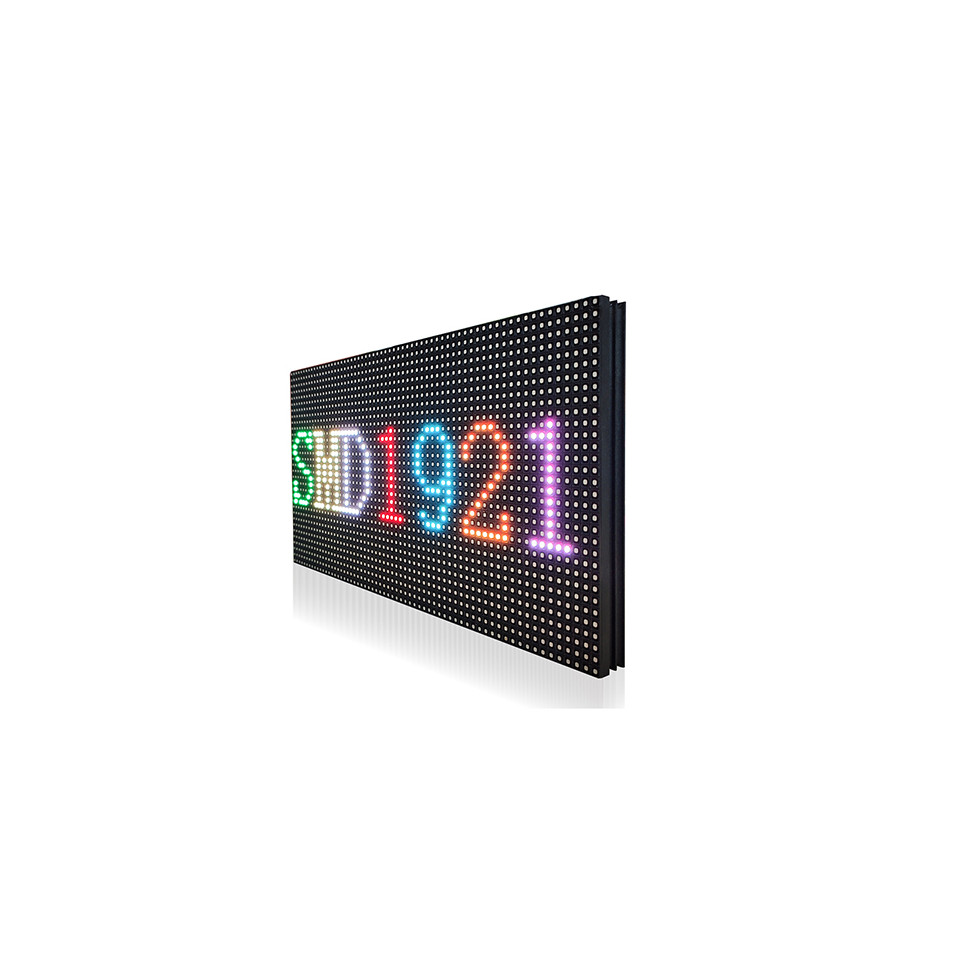

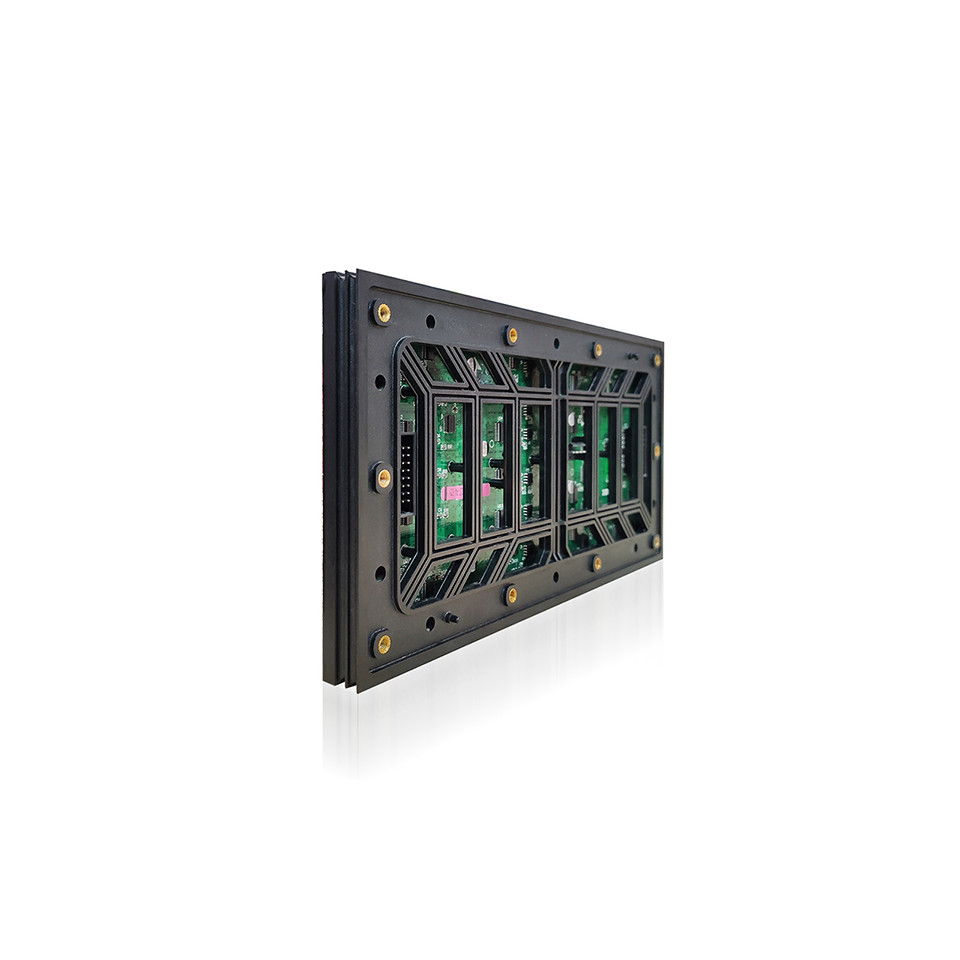

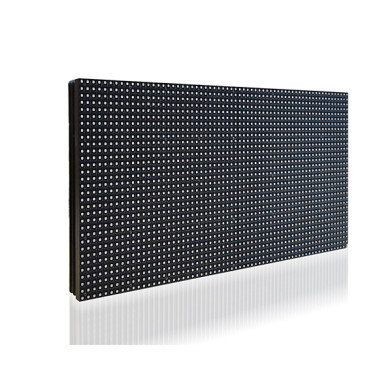

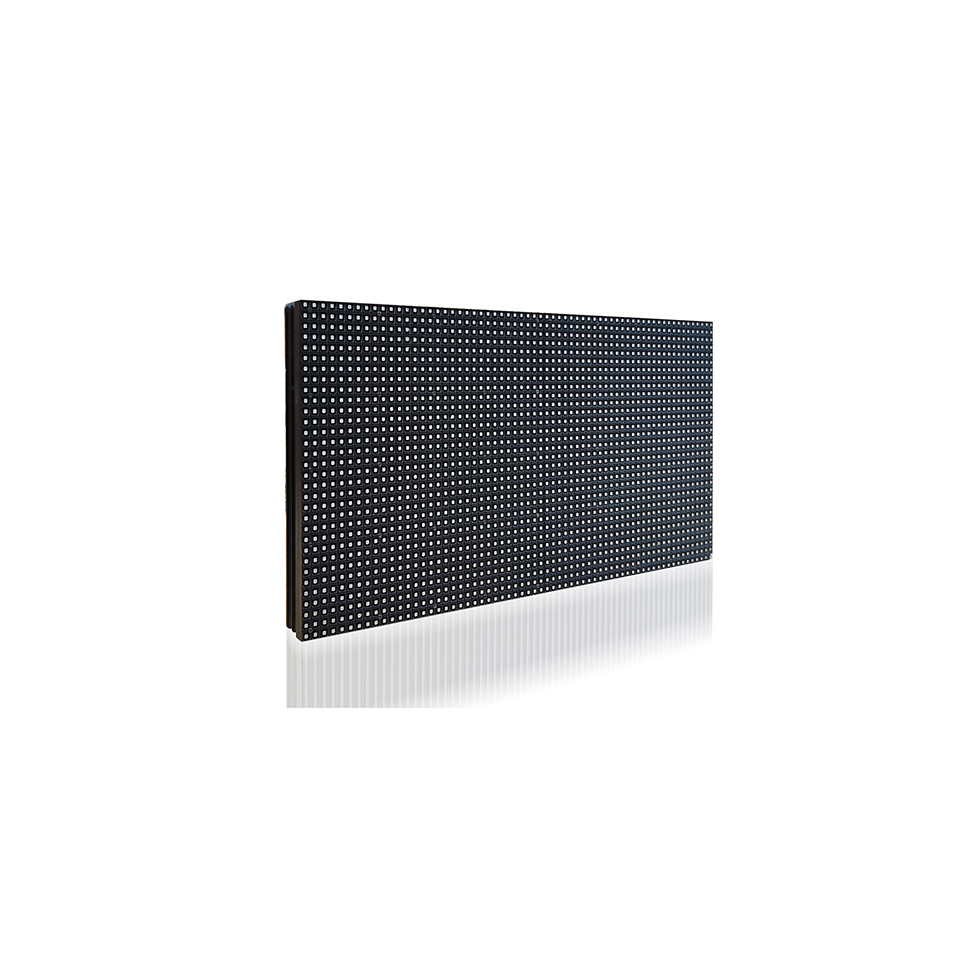

P4 outdoor full color LED display module 256*128mm

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information

OUTDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Module Item Parameter
Model Number P4-8S
Module size 256mm*128mm
Pixel pitch 4mm
Pixels Density 62500dot/m2
Pixel configuration 1R1G1B
Package mode SMD1921
Pixel resolution 64dots(W)*32dots(H)
Max Power 30W
Weight 0.5kg
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
 Brightness of white balance 6500cd/m2
  Best viewing  distance 4M~50M
Best viewing angle 160°(W) 120°(H)
Temperature (Storage) 35℃~+85℃, (Working) -20℃~+50℃
Relative humidity 10%-95%
Working voltage DC 5V
Average Power consumption <360W/㎡
Max.Power consumption <900W/㎡
Current <20mA(single LED)
Main technical  parameter Driving device Constant drive IC
Refresh frequency >960HZ
 Grey scale/colors 16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
