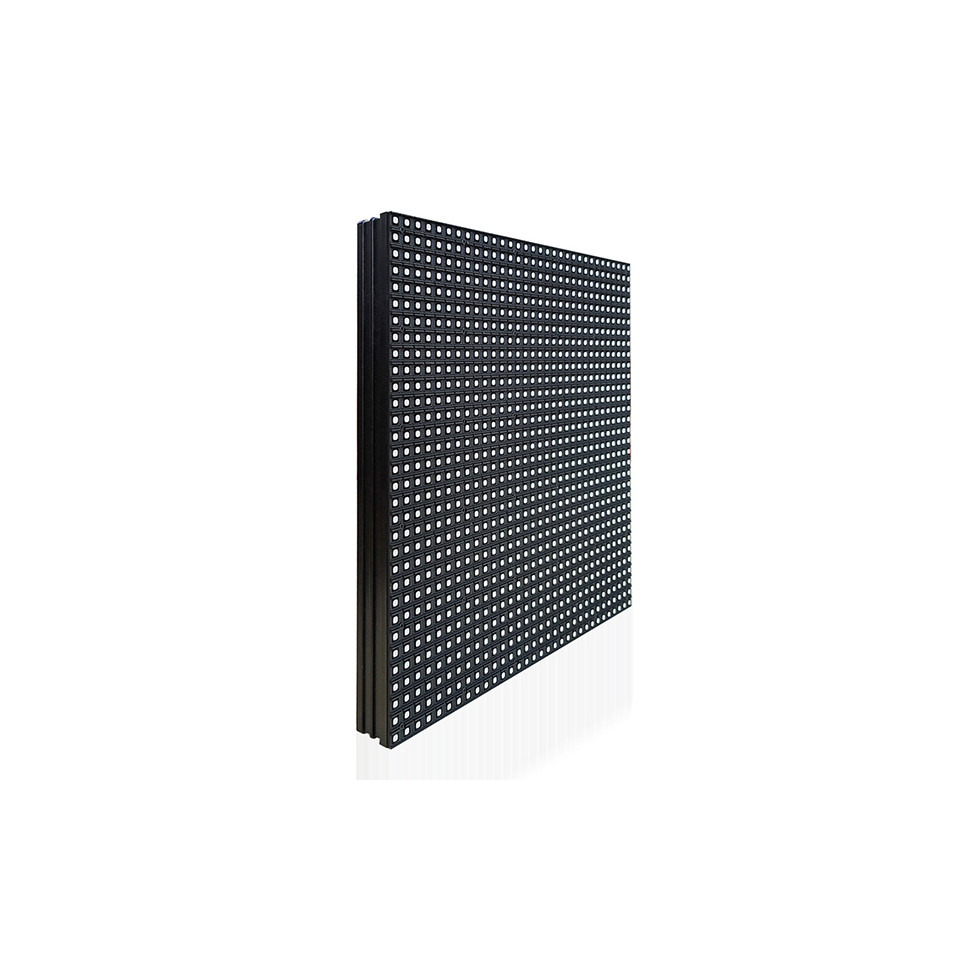

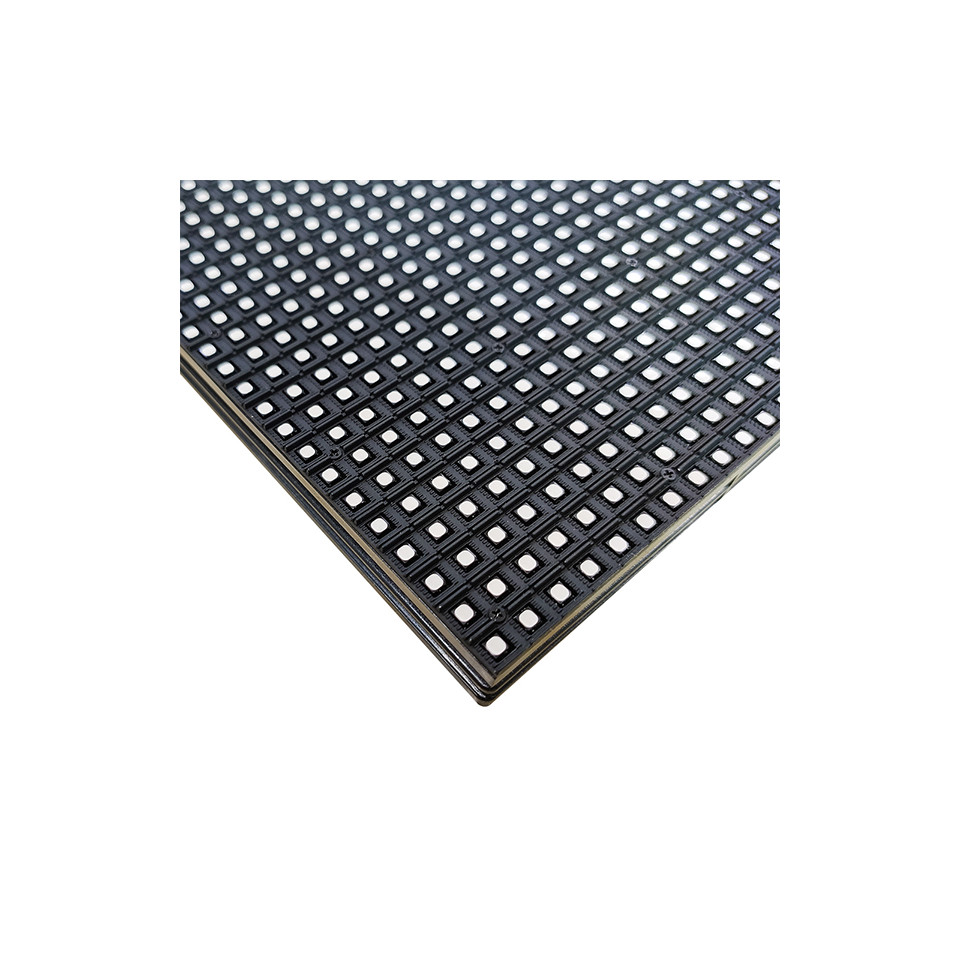

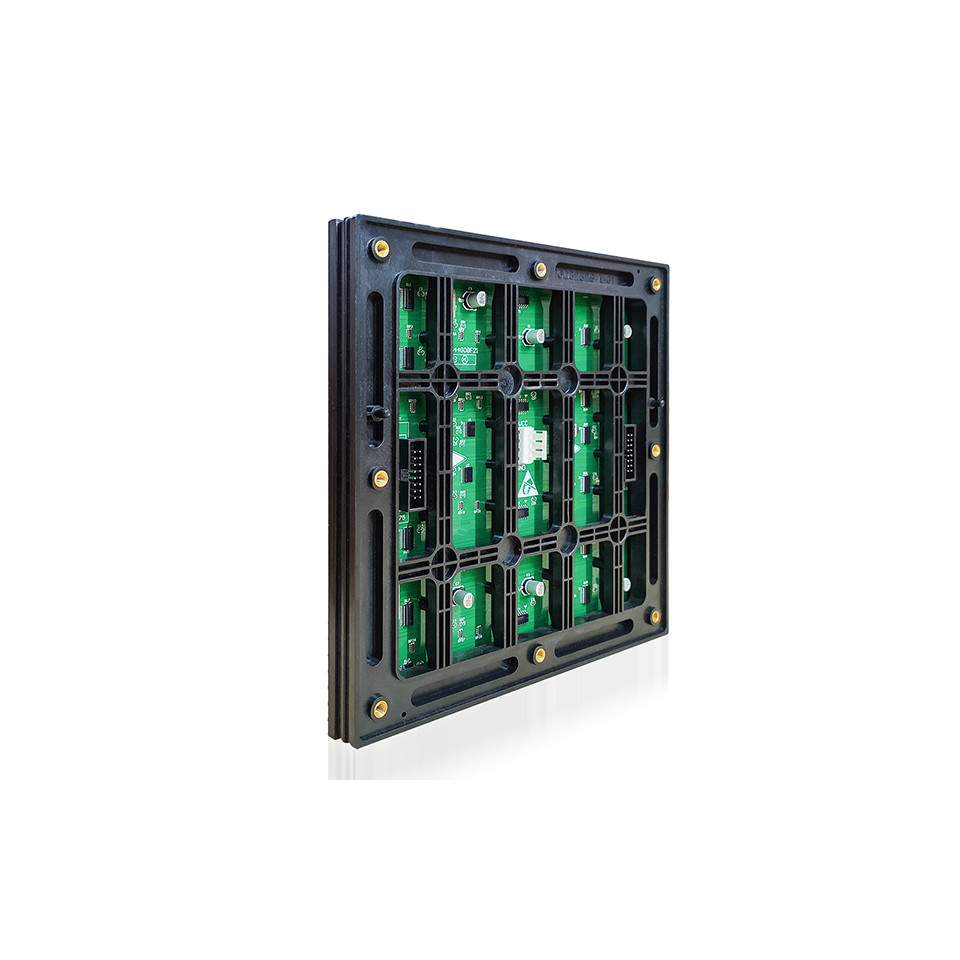

P6 outdoor full color LED display module 192*192mm

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information

OUTDOOR P6 SMD 3IN1 TECHNICAL PARAMETERS
Module Item Parameter
Model Number P6-8S
Module size 192mm*192mm
Module thickness 17,05mm
Pixel pitch 6mm
Pixels Density 27777dot/m2
Pixel configuration 1R1G1B
Package mode SMD3535   / SMD2727
Pixel resolution 32dots(W)*32dots(H)
Max Power 28W
Weight 0.369kg
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
 Brightness of white balance ≥6500cd/m2
  Best viewing  distance 6M~40M
Best viewing angle 160°(W) 120°(H)
Temperature (Storage) 35℃~+85℃, (Working) -20℃~+50℃
Relative humidity 10%-95%
Working voltage DC 5V
Average Power consumption <380W/㎡
Max.Power consumption <950W/㎡
Current <20mA(single LED)
Main technical  parameter Driving device Constant drive IC
Refresh frequency >1800HZ
 Grey scale/colors 16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
