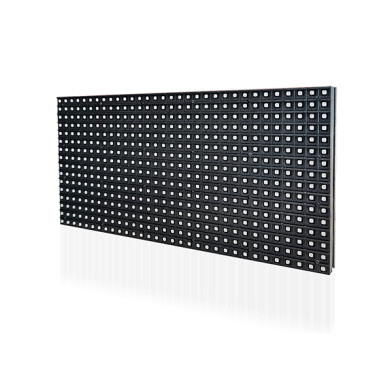

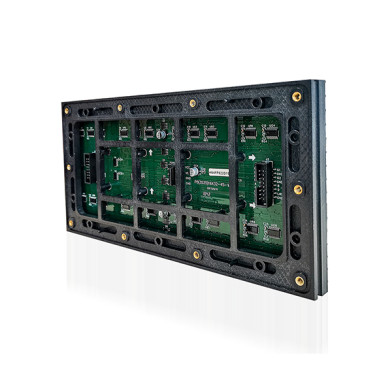

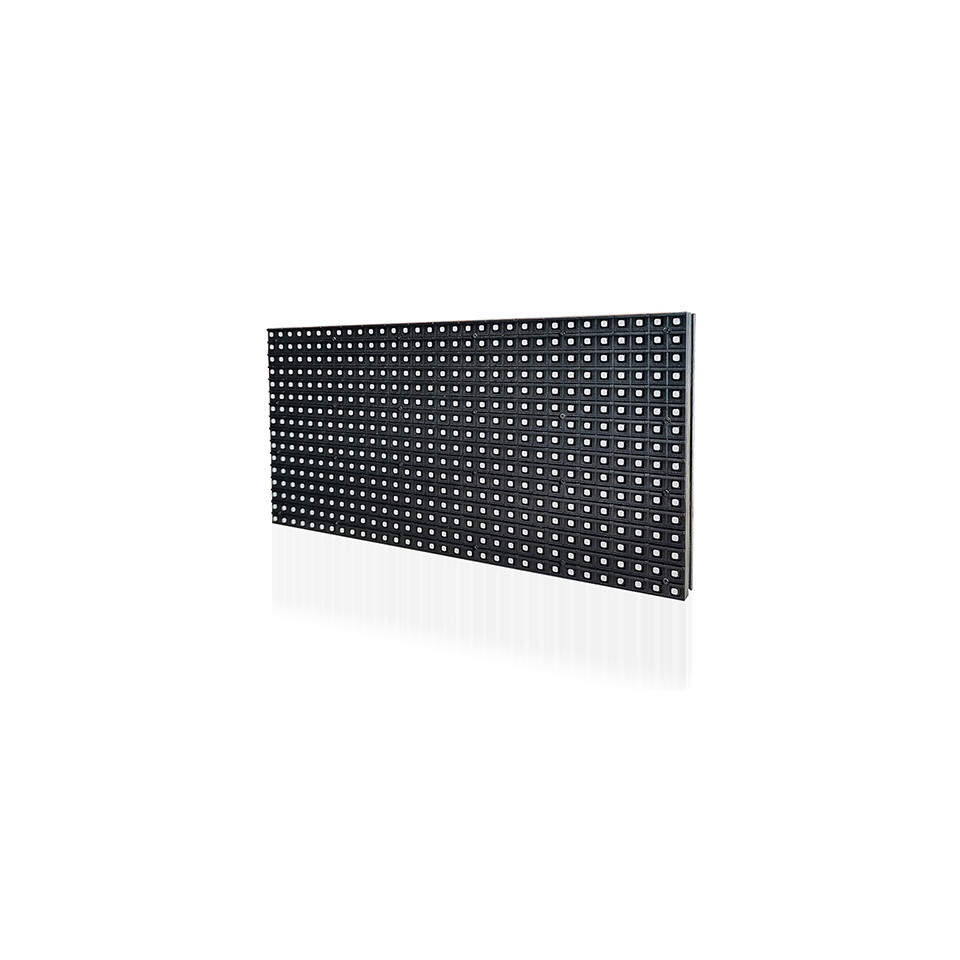

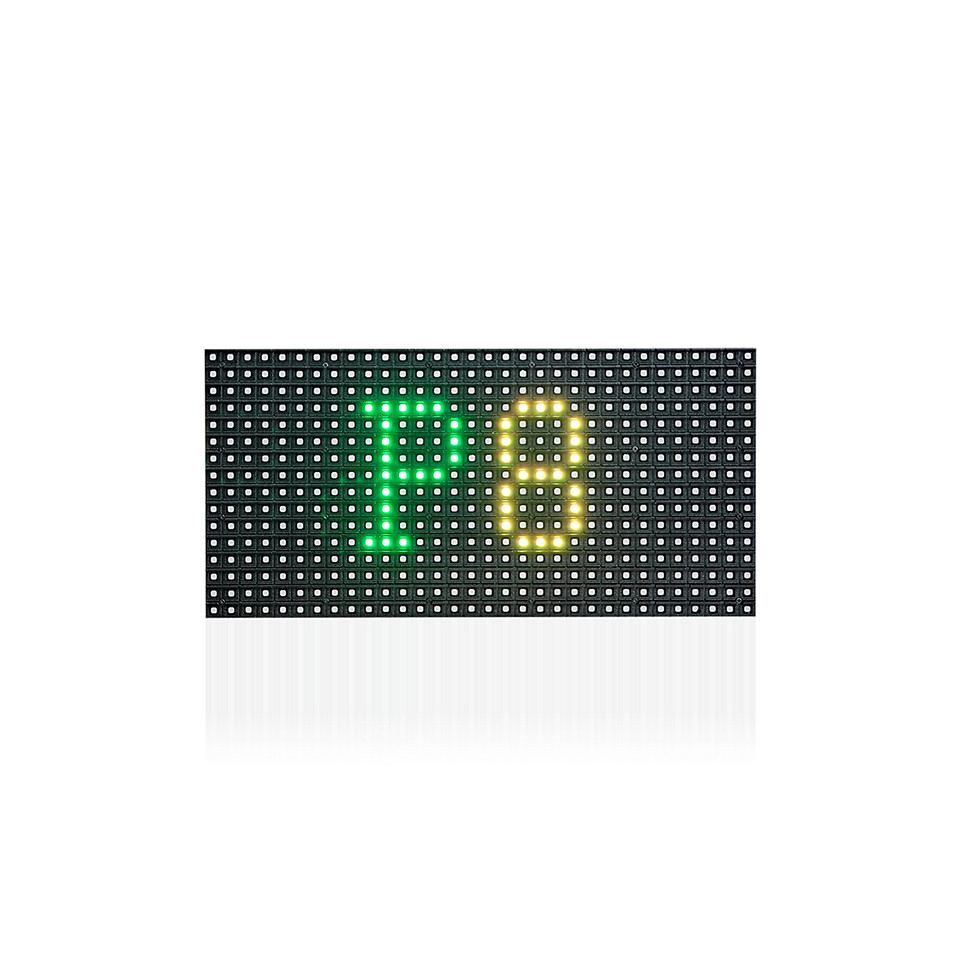

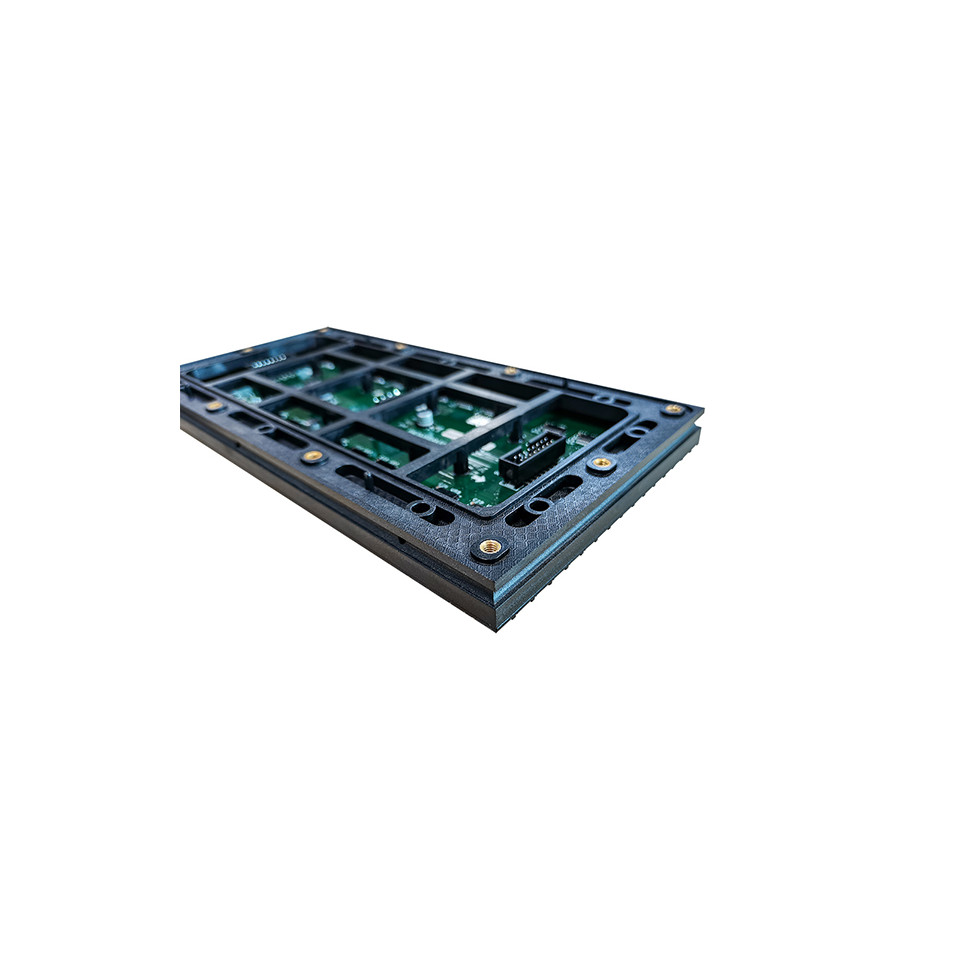

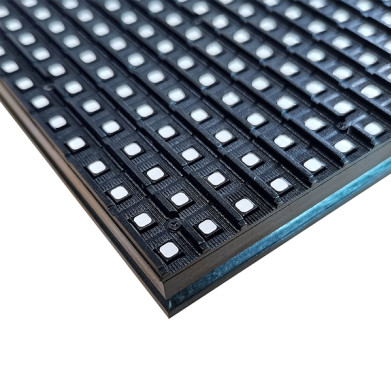

P8 outdoor full color LED display module 256*128mm

Contact now

Sale

Sale

Product information

OUTDOOR P8 SMD 3IN1 TECHNICAL PARAMETERS
Module	Item	Parameter
	Model Number	P8-4S
	Module size	256mm*1280mm
	Module thickness	17,05mm
	Pixel pitch	8mm
	Pixels Density	40000dot/m2
	Pixel configuration	1R1G1B
	Package mode	SMD3535
	Pixel resolution	32dots(W)*16dots(H)
	Max Power	35W
	Weight	0.474kg
	Drive type	Constant drive
	Scan mode	1/4scan
	Port type	HUB75
	Brightness of white balance	6500cd/m2
	Best viewing distance	8M～40M
	Best viewing angle	160°(W) 120°(H)
	Temperature	(Storage) 35℃～+85℃, (Working) -20℃～+50℃
	Relative humidity	10%-95%
	Working voltage	DC 5V
	Average Power consumption	<320W/㎡
	Max.Power consumption	<780W/㎡
	Current	<20mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>1600HZ
	Grey scale/colors	16384gray level/16.7M colors
	MTBF	>9000hours
	Power switch	Automatic switch
