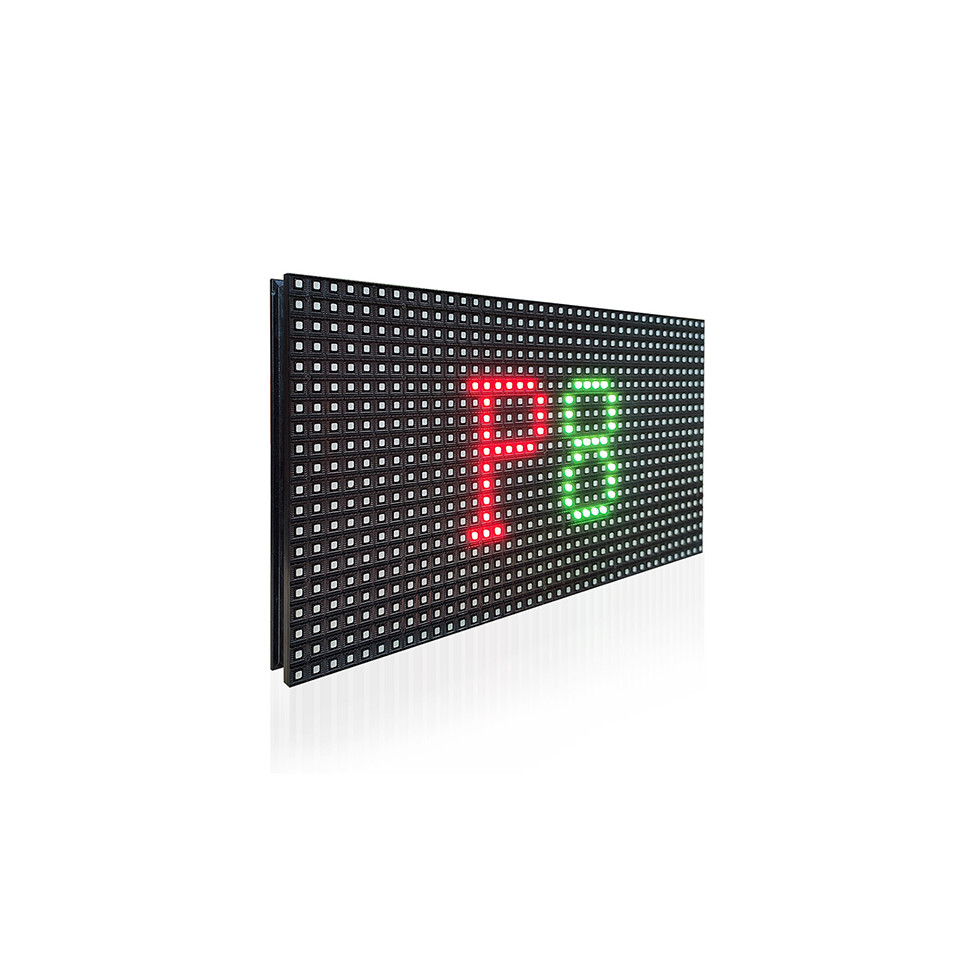

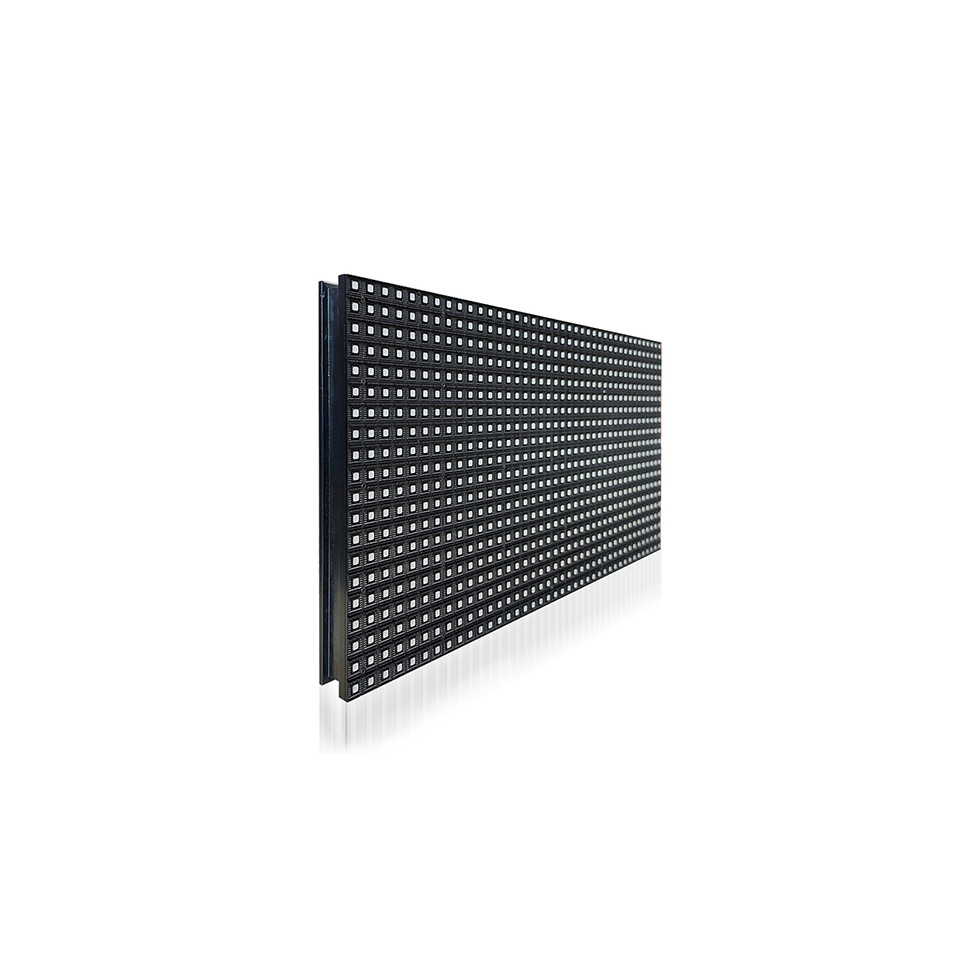

P8 outdoor full color LED display module 320*160mm

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information

OUTDOOR P8 SMD 3IN1 TECHNICAL PARAMETERS
Module Item Parameter
Model Number P8-5S
Module size 320mm*160mm
Module thickness 17,05mm
Pixel pitch 8mm
Pixels Density 15625dot/m2
Pixel configuration 1R1G1B

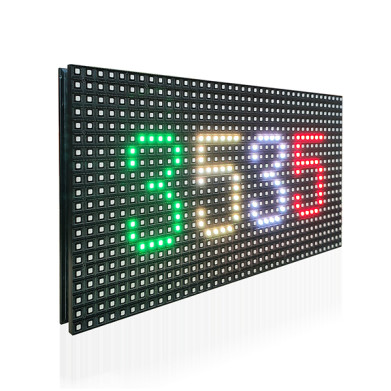

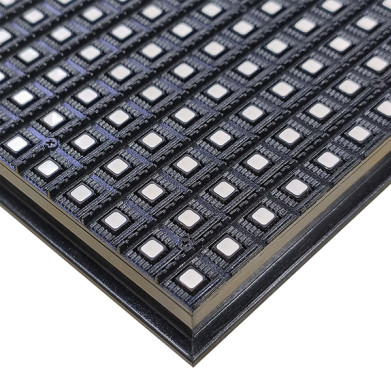

Package mode SMD3535
Pixel resolution 40dots(W)*20dots(H)
Max Power 40W
Weight 0.474kg
Drive type Constant drive
Scan mode 1/5scan
Port type HUB75
 Brightness of white balance 6500cd/m2
  Best viewing  distance 8M~40M
Best viewing angle 160°(W) 120°(H)
Temperature (Storage) 35℃~+85℃, (Working) -20℃~+50℃
Relative humidity 10%-95%
Working voltage DC 5V
Average Power consumption <320W/㎡
Max.Power consumption <780W/㎡
Current <18mA(single LED)
Main technical  parameter Driving device Constant drive IC
Refresh frequency >1600HZ
 Grey scale/colors 16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
