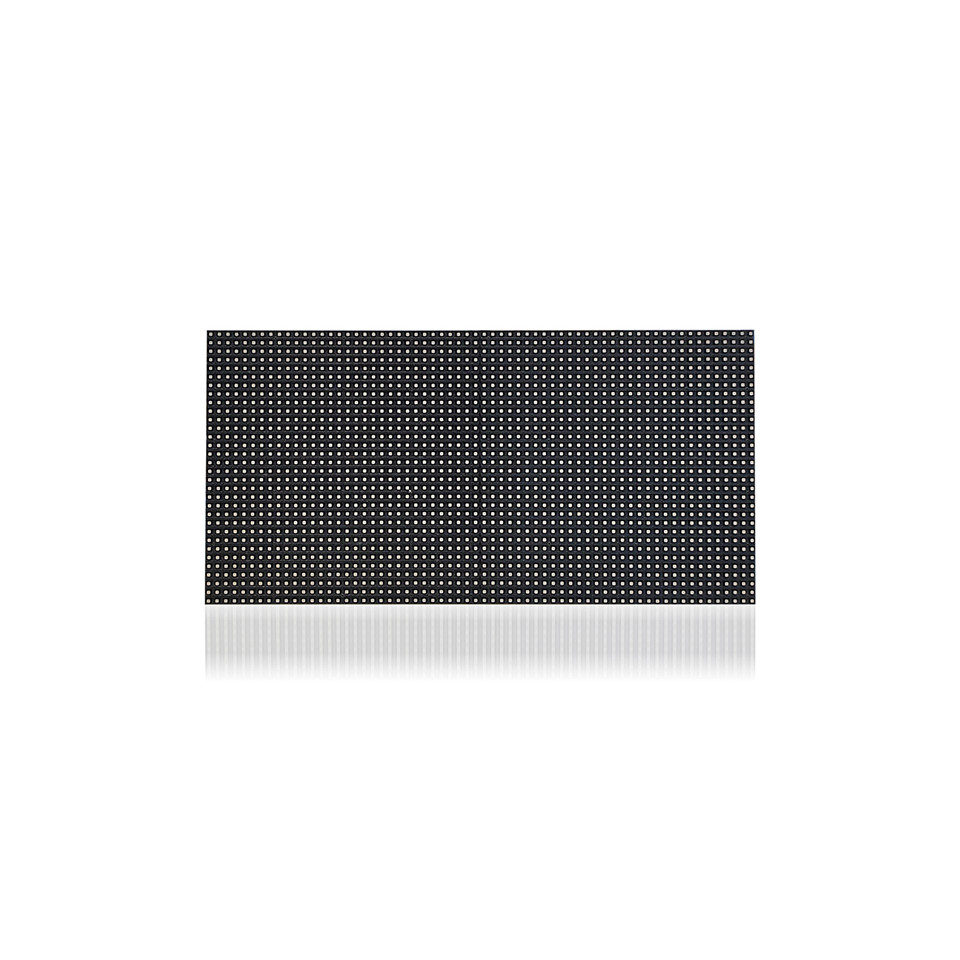

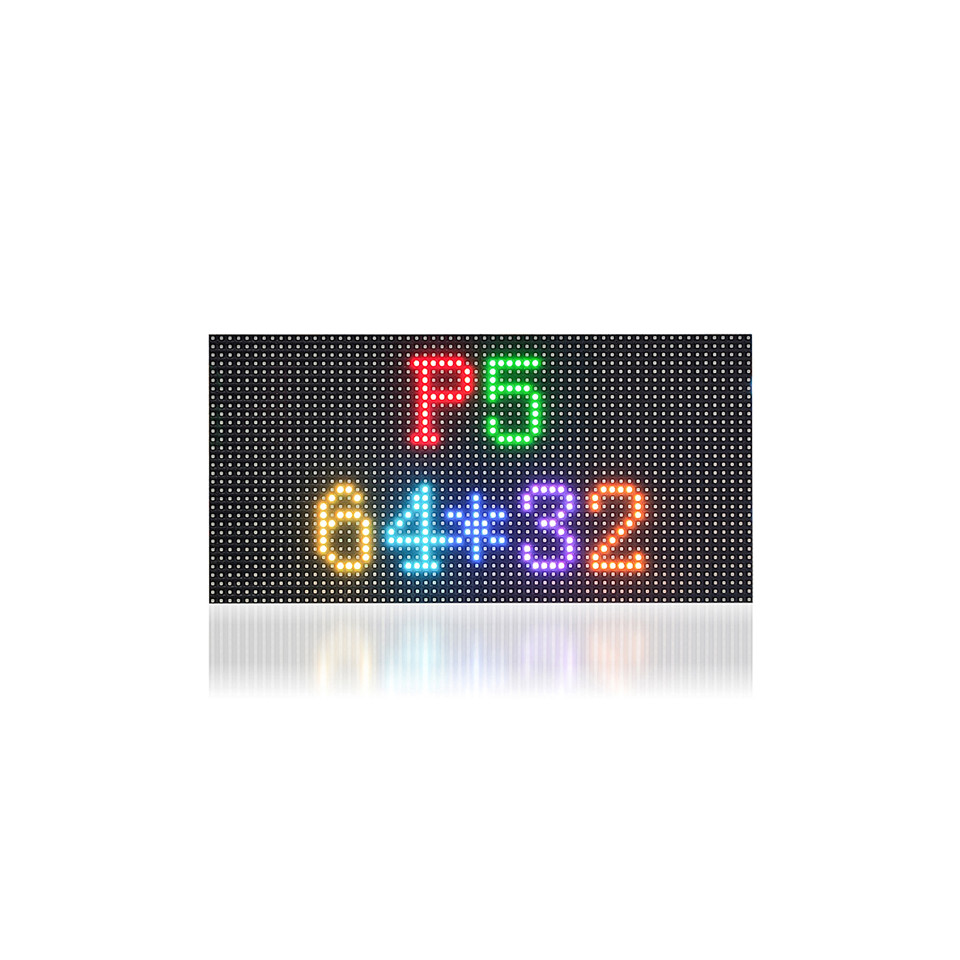

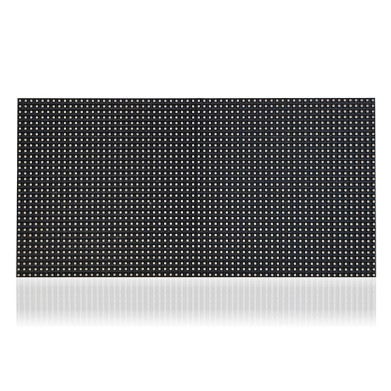

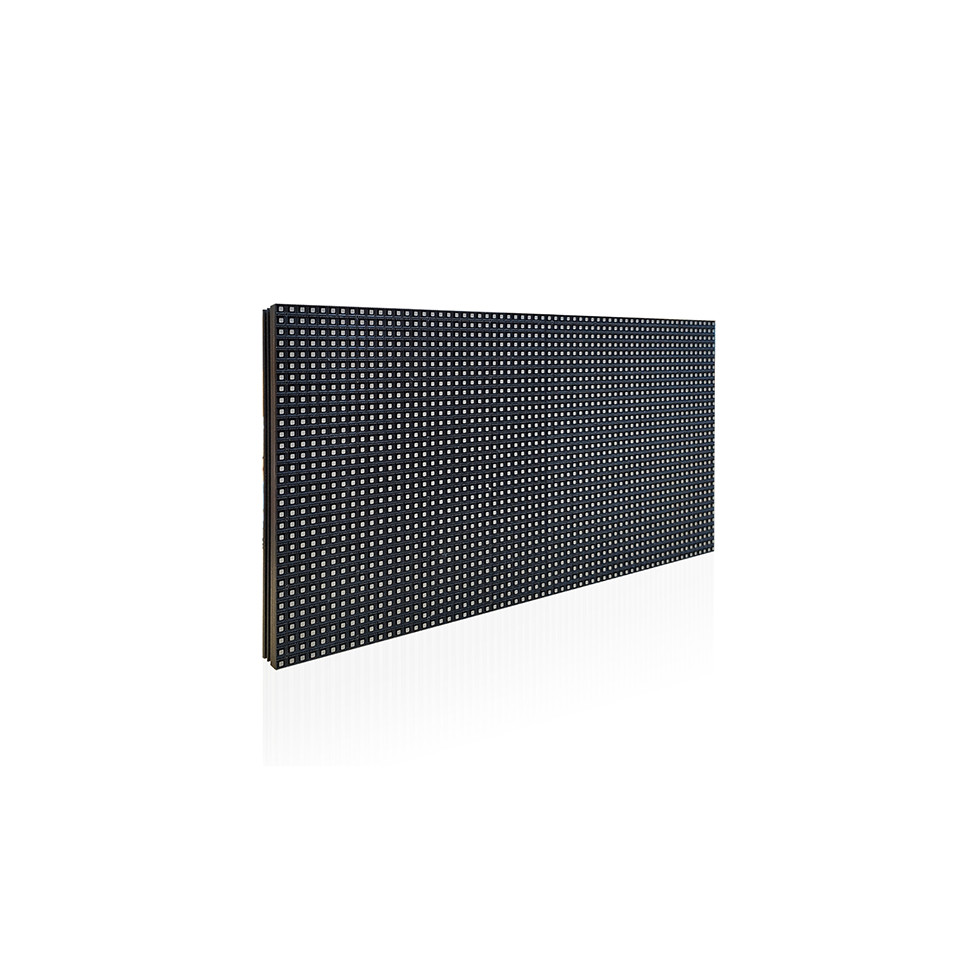

OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS | ||
Module | Item | Parameter |
Model Number | P5-8S | |
Module size | 3200mm*160mm | |
Module thickness | 17,05mm | |
Pixel pitch | 5mm | |
Pixels Density | 40000dot/m2 | |
Pixel configuration | 1R1G1B | |
Package mode | SMD2727 SMD2525 | |
Pixel resolution | 32dots(W)*32dots(H) | |
Max Power | 40W | |
Weight | 0.5kg | |
Drive type | Constant drive | |
Scan mode | 1/8scan | |
Port type | HUB75 | |
Brightness of white balance | 6500cd/m2 | |
Best viewing distance | 5M~100M | |
Best viewing angle | 160°(W) 120°(H) | |
Temperature | (Storage) 35℃~+85℃, (Working) -20℃~+50℃ | |
Relative humidity | 10%-95% | |
Working voltage | DC 5V | |
Average Power consumption | <390W/㎡ | |
Max.Power consumption | <980W/㎡ | |
Current | <20mA(single LED) | |
Main technical parameter | Driving device | Constant drive IC |
Refresh frequency | >1920HZ | |
Grey scale/colors | 16384gray level/16.7M colors | |
MTBF | >9000hours | |
Power switch | Automatic switch |
