PRODUCT  Indoor LED

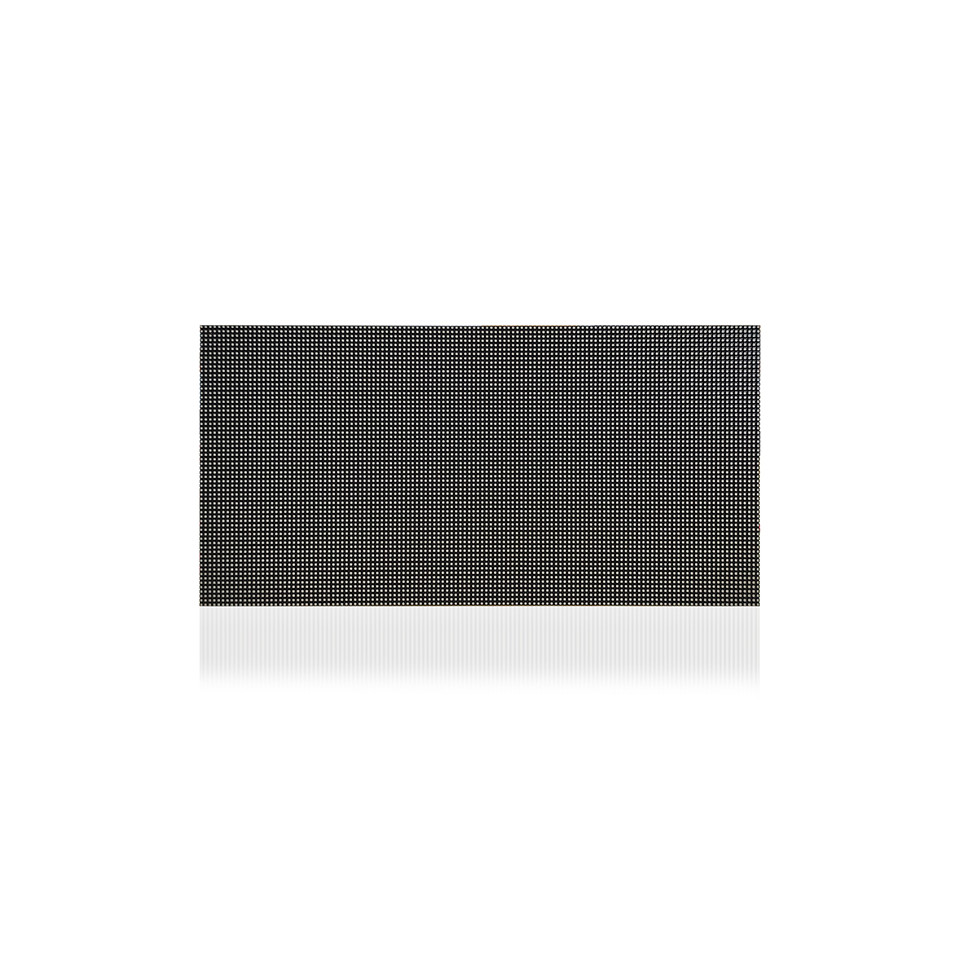

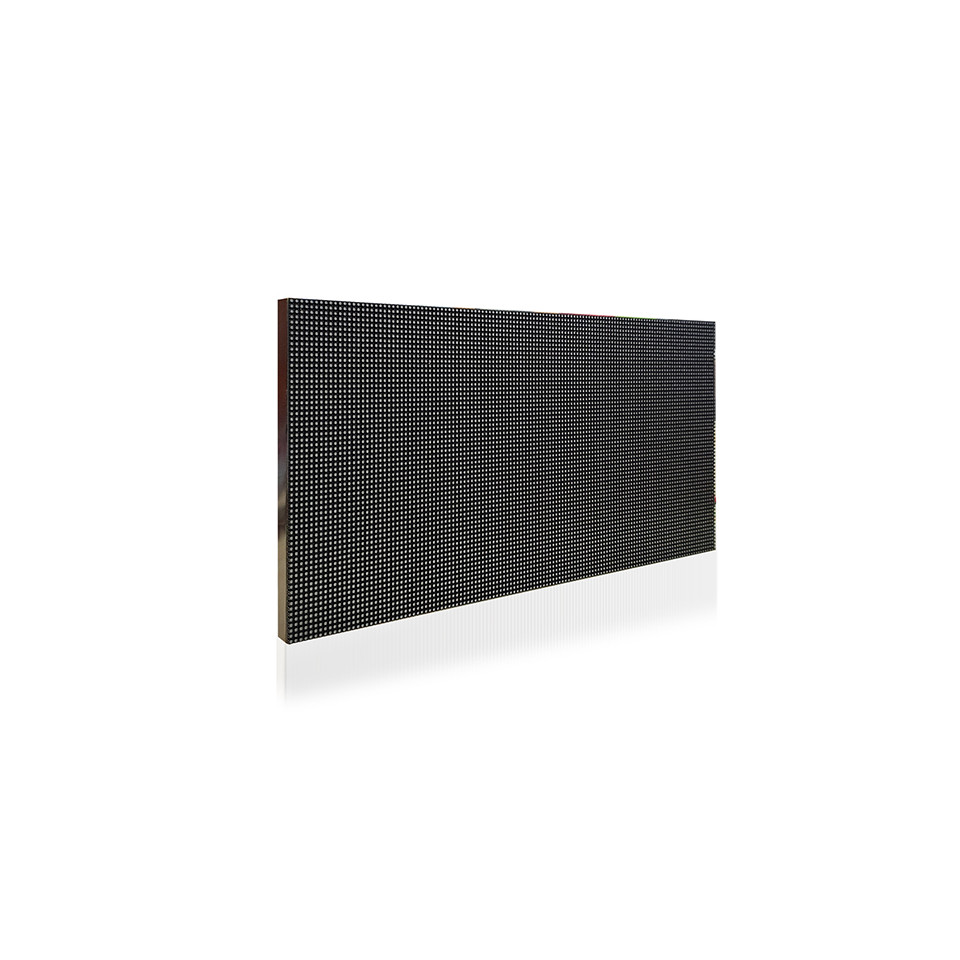

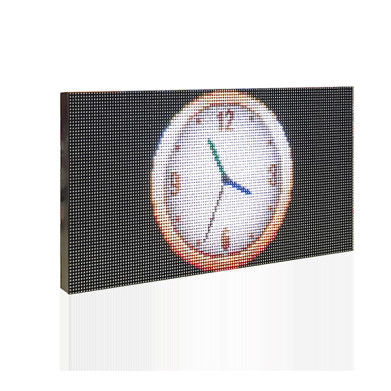

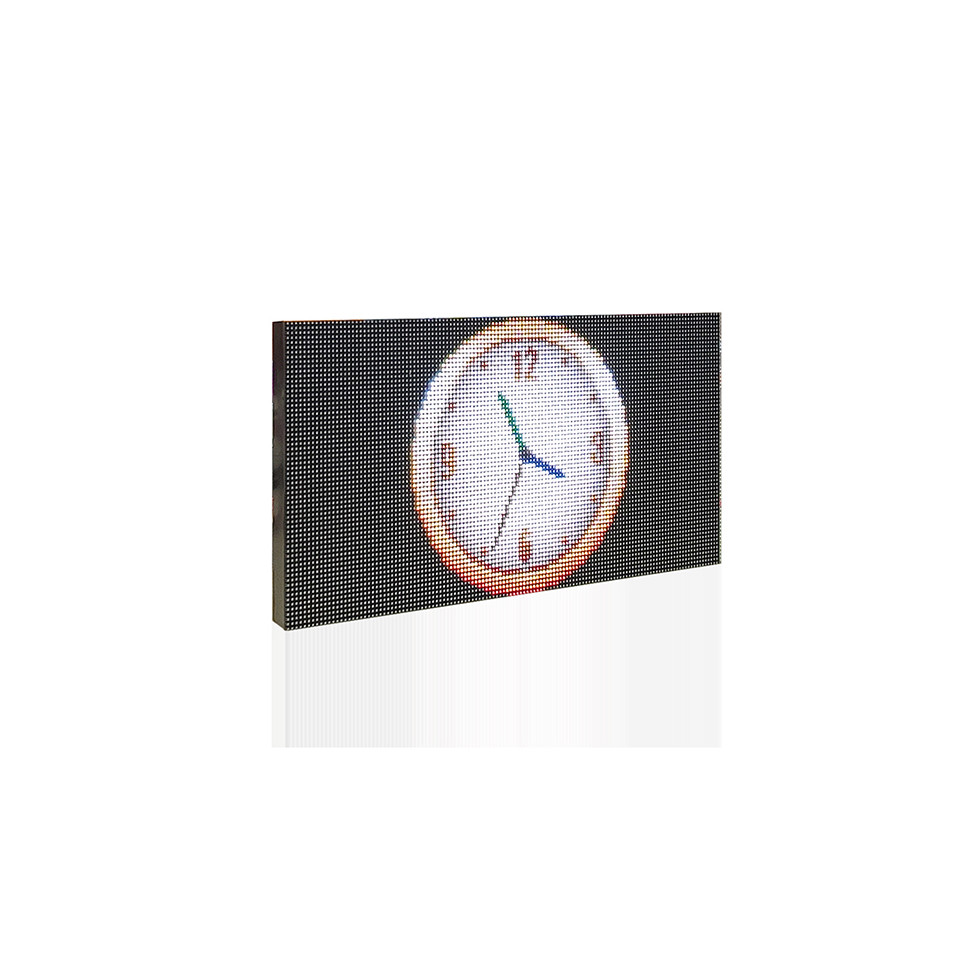

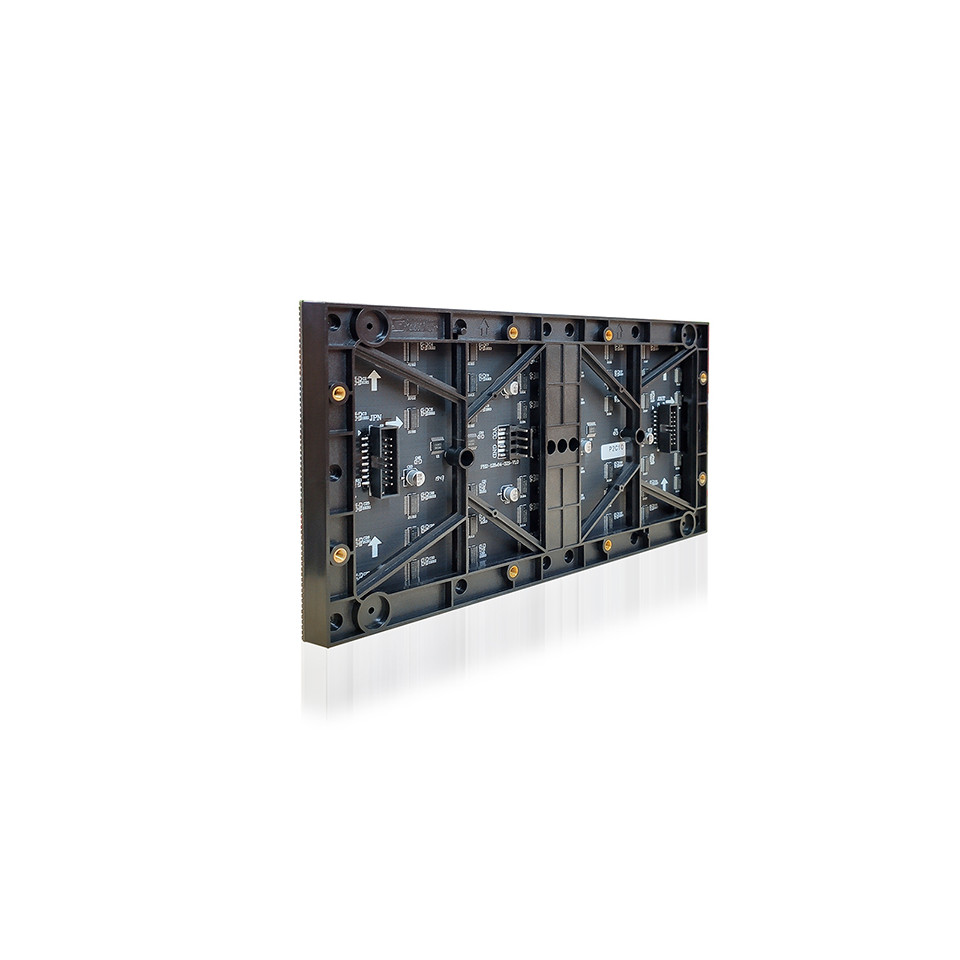

P2 indoor full-color LED display module 256*128mm

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information

INDOOR  P2 SMD 3IN1 TECHNICAL PARAMETERS
Module Item Parameter
Model Number P2-32S
Module size 256mm*128mm
Module thickness 13mm
Pixel pitch 2mm
Pixels Density 25000dot/m2
Pixel configuration 1R1G1B
Package mode SMD 3IN1 -1515
Pixel resolution 128dots(W)*64dots(H)
Max Power 23W
Weight 0.352KG
Drive type Constant drive
Scan mode 1/32scan
Port type HUB75E
 Brightness of white balance 800cd/m2
  Best viewing  distance 2M~10M
Best viewing angle 140°(W) 120°(H)
Temperature (Storage) 35℃~+85℃, (Working) -20℃~+50℃
Relative humidity 10%-95%
Working voltage DC 5V
Average Power consumption <280W/㎡
Max.Power consumption <700W/㎡
Current <15mA(single LED)
Main technical  parameter Driving device Constant   drive  IC
Refresh frequency >1920HZ
 Grey scale/colors 4096gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Working voltage DC   5V ±10%
