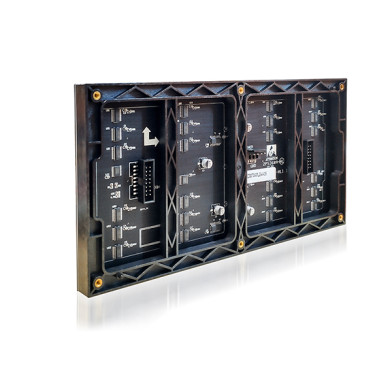

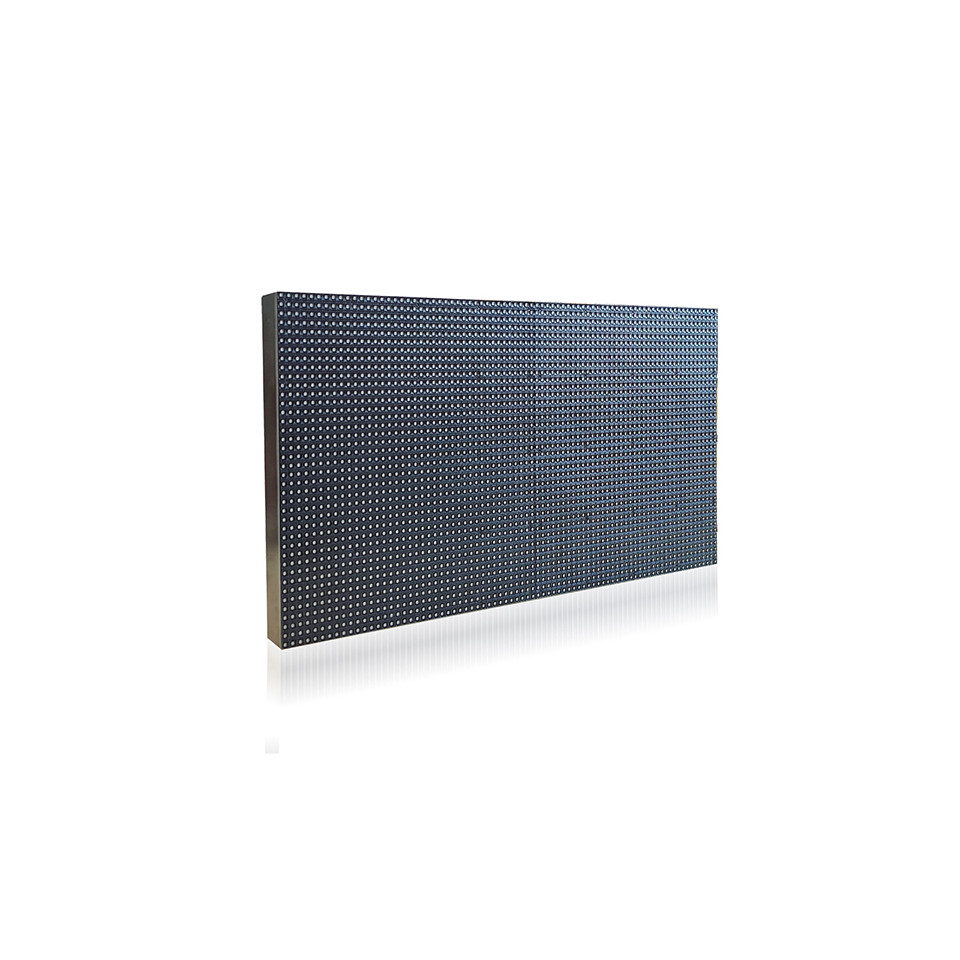

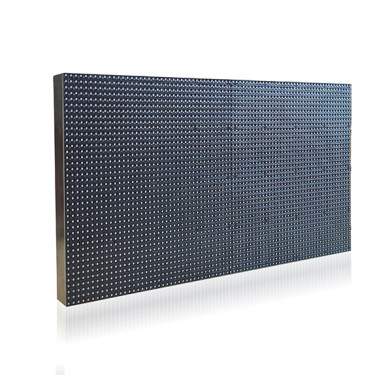

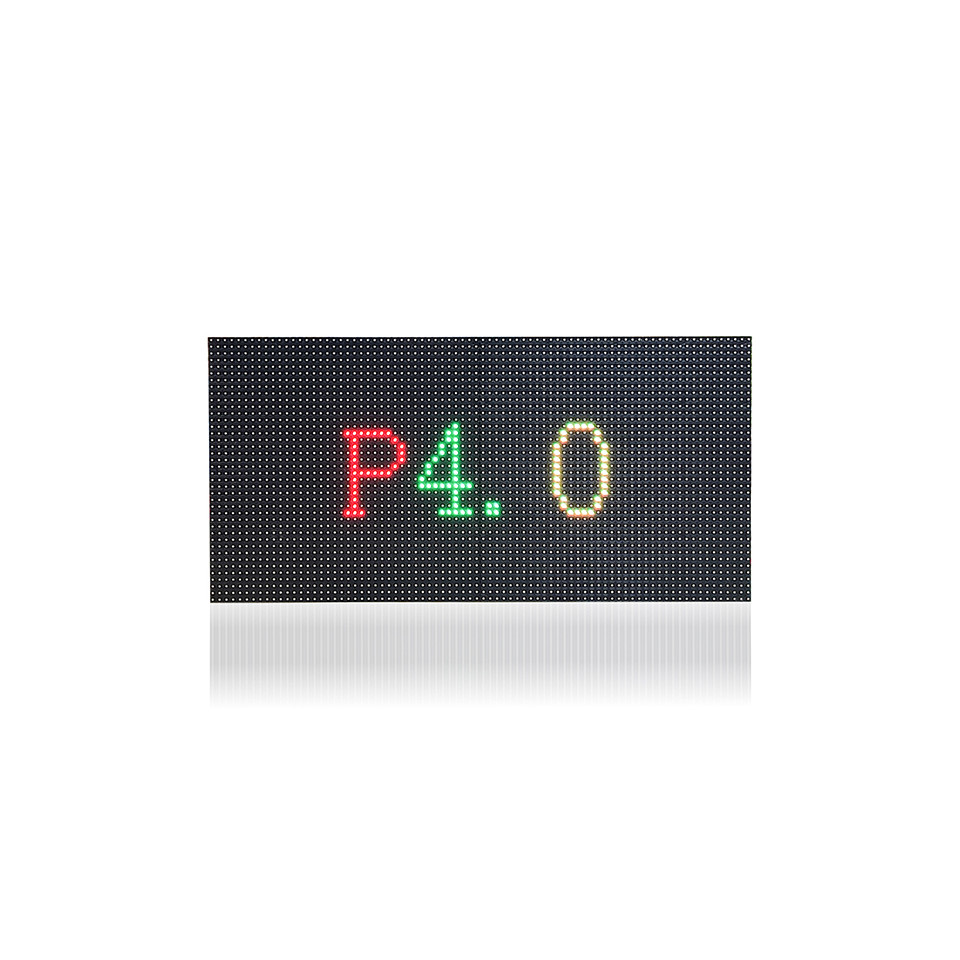

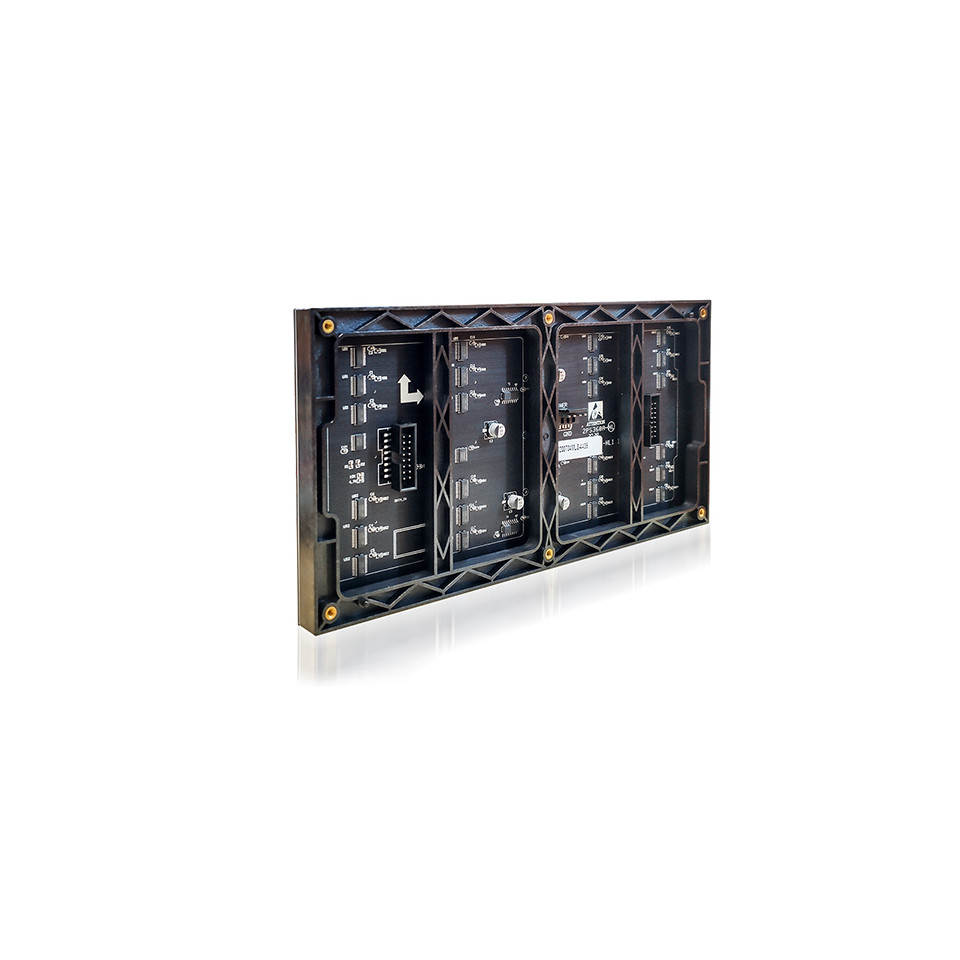

P4 indoor full-color LED display module 256*128mm

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information

INDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
Module Item Parameter
Model Number ZX-P4-INDOOR-80-40
Module size 256mm*128mm
Pixel pitch 4mm
Pixels Density 62500dot/m2
Pixel configuration 1R1G1B
Package mode SMD2121
Pixel resolution 64dots(W)*32dots(H)
Max Power 22W
Weight 0.208kg/0.242kg
Drive type Constant drive
Scan mode 1/16scan
Port type HUB75
 Brightness of white balance ≥1200cd/m2
  Best viewing distance 4M~20M
Best viewing angle 160°(W) 120°(H)
Temperature (Storage) 35℃~+85℃, (Working) -20℃~+50℃
Relative humidity 10%-95%
Working voltage DC   5V
Average Power consumption <280W/㎡
Max.Power consumption <700W/㎡
Current <18mA(single  LED)
Main technical  parameter Driving device Constant   drive  IC
Refresh frequency >1920HZ
 Grey scale/colors 4096gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Working voltage DC   5V ±10%
