PRODUCT  Indoor LED

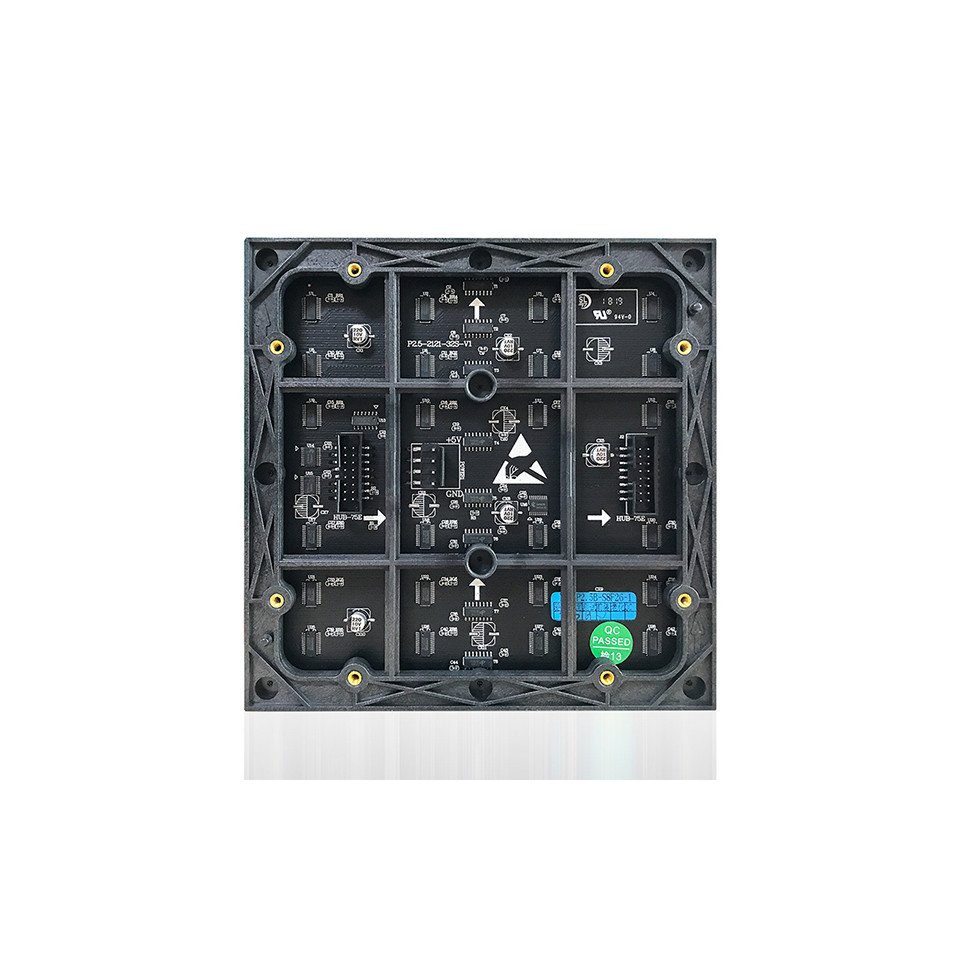

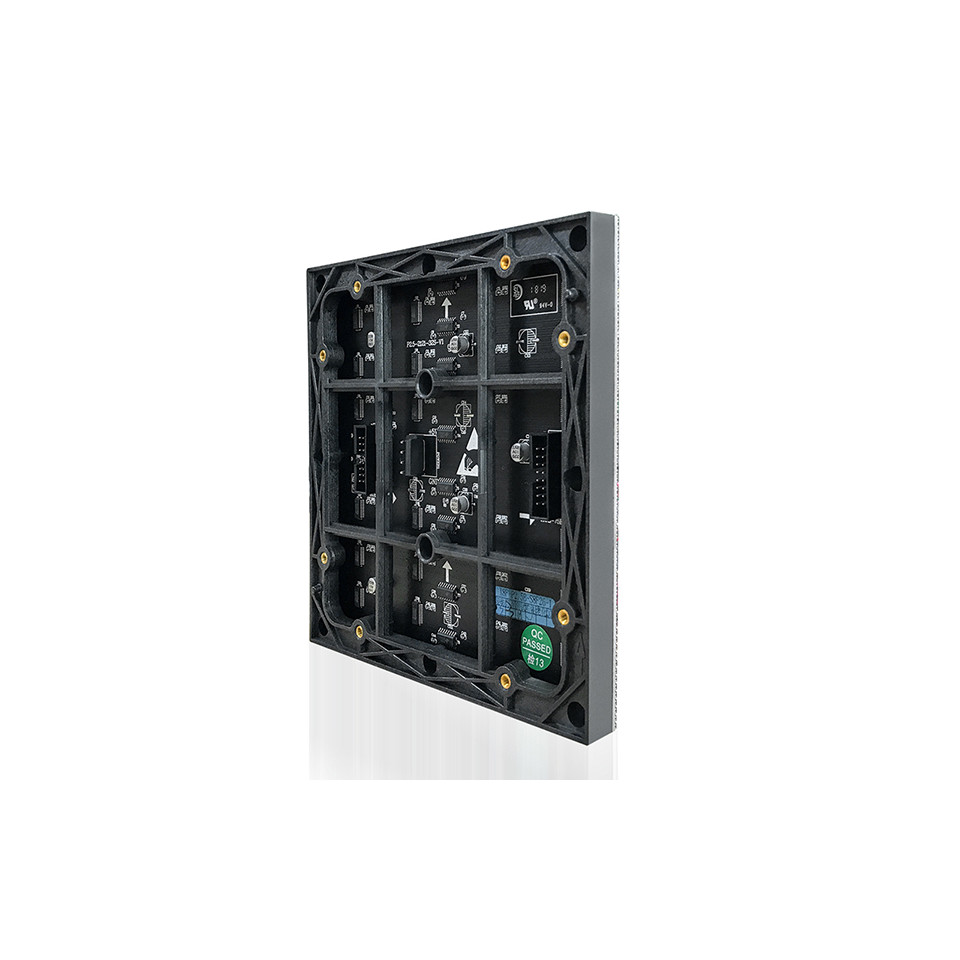

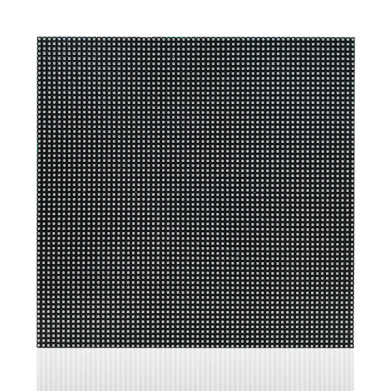

P2.5 indoor full color LED display module 160*160mm

Contact now
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Sale
  • Free consultation solution
  • Equipment quotation support
  • Support Product Catalog
  • On-site survey
Product information

INDOOR  P2 SMD 3IN1 TECHNICAL PARAMETERS
Module Item Parameter
Model Number P2.5-32S
Module size 160mm*160mm
Module thickness 15mm, 27mm
Pixel pitch 2,5mm
Pixels Density 160000dot/m2
Pixel configuration 1R1G1B
Package mode SMD 3IN1 -1515
Pixel resolution 64dots(W)*64 dots(H)
Max Power 25W
Weight 0.232kg
Drive type Constant drive
Scan mode 1/32scan
Port type HUB75E
 Brightness of white balance 800cd/m2
  Best viewing  distance 3M~20M
Best viewing angle 160°(W) 120°(H)
Temperature (Storage) 35℃~+85℃, (Working) -20℃~+50℃
Relative humidity 10%-95%
Working voltage DC 5V
Average Power consumption <320W/㎡
Max.Power consumption <780W/㎡
Current <18mA(single LED)
Main technical  parameter Driving device Constant drive IC
Refresh frequency >1920HZ
 Grey scale/colors 65536gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
