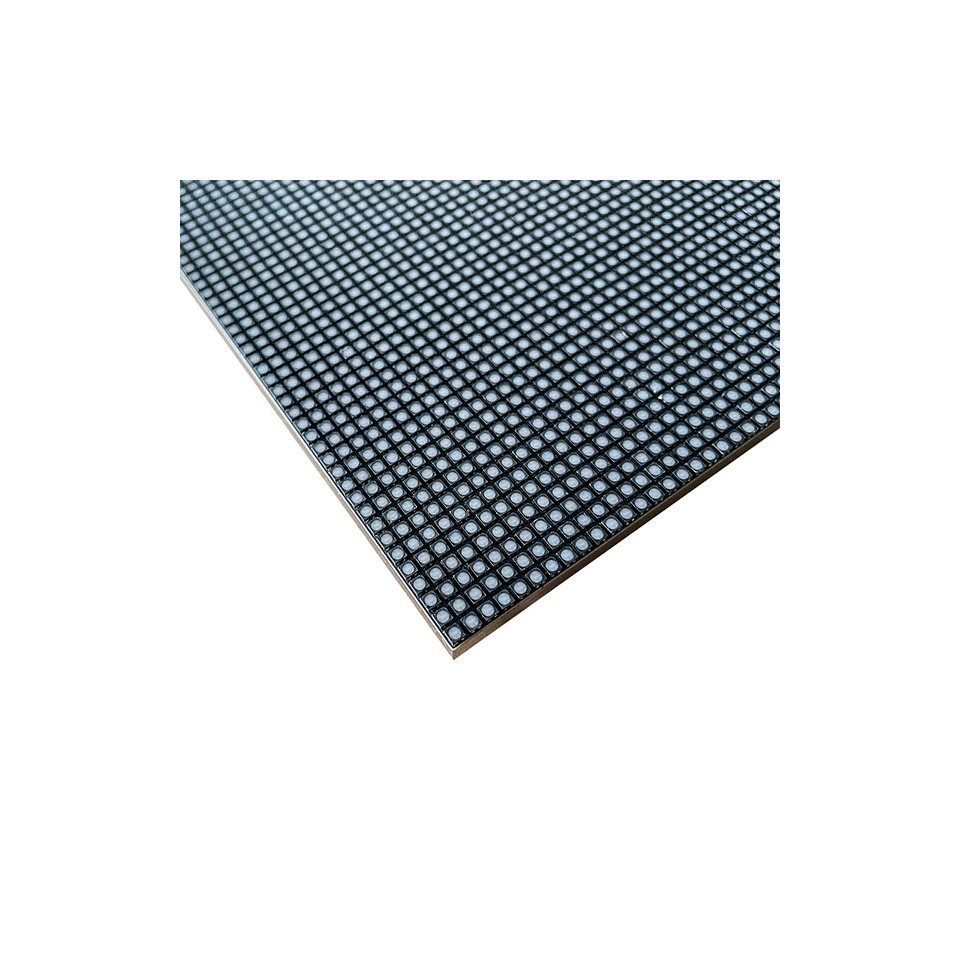

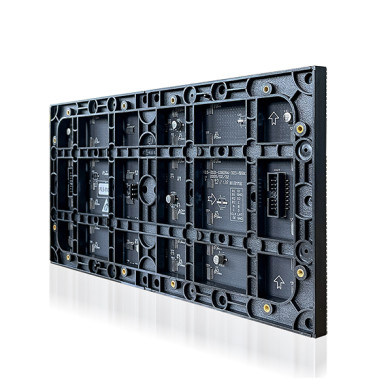

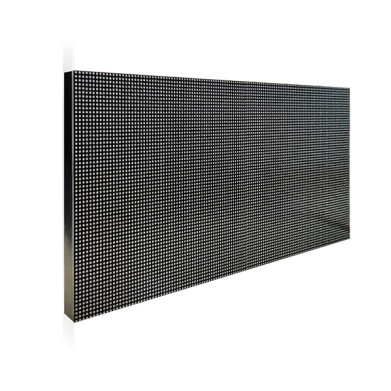

P2.5 indoor full color LED display module 320*160mm

Contact now

Sale

Sale

Product information

INDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
Module	Item	Parameter
	Model Number	P2.5-32S
	Module size	320mm*160mm
	Pixel pitch	2,5mm
	Pixels Density	160000dot/m2
	Pixel configuration	1R1G1B
	Package mode	SMD2121
	Pixel resolution	128dots(W)*64dots(H)
	Max Power	32W
	Weight	0.425kg
	Drive type	Constant drive
	Scan mode	1/32scan
	Port type	HUB75E
	Best viewing distance	3M～20M
	Best viewing angle	140°(W) 120°(H)
	Temperature	(Storage) 35℃～+85℃, (Working) -20℃～+50℃
	Relative humidity	10%-95%
	Working voltage	DC 5V
	Average Power consumption	<240W/㎡
	Max.Power consumption	<620W/㎡
	Current	<18mA(single LED)
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	>1920HZ
	Grey scale/colors	65536gray level/16.7M colors
	MTBF	>9000hours
	Power switch	Automatic switch
